12X Zoom System
High Resolution Macro Imaging for up to 2/3-inch Cameras
Navitar 12X Zoom lenses offer the highest combination of zoom range and resolution in an optical system. Ideal for high magnification applications requiring the optimal balance between optical performance, large zoom range and price, the 12X offers incredible 12X (0.58-7X) magnification, increased resolution with 0.004-0.550 N.A., and unmatched edge flatness and clarity.
FEATURES
|
|
12X Zoom System Diagram (click to expand)
12X Zoom Modular Design Combinations (click to expand)
12X Zoom Field of View Matrix (click to expand)
12X UltraZoom Field of View Matrix (click to expand)
12X Zoom Coaxial Field of View (click to expand)
12X Zoom System DOWNLOADS (click to expand)
STANDARD
Body
Tubes
Body Tubes
Straight
Adapters
90°
Adapters
Standard
Attachments
Telecentric
System
and
Mounts
12XUltraZoom
NIR
DIC
System
Motorized
Body
Tubes
Motorized
Body
Tubes
DISTANCE
XTENDER
STANDARD
Body
Tubes
Camera Interface
 | 1-6010 | C-Mount Adapter | ||
 | 1-6050 | Eye Piece Holder (23 mm Microscope Eye Piece Sold Separately) | ||
 | 1-60370 | Auxiliary Viewing Port |
12X Standard Body Tubes: Non Fine-Focus
 | 1-50330 | 12X Zoom, Non Fine-Focus | ||
 | 1-50330A | 12X Zoom, Non Fine-Focus
Aperture | ||
 | 1-50330D | 12X Zoom, Non Fine-Focus
Detent | ||
 | 1-50330AD | 12X Zoom, Non Fine-Focus
Aperture, Detent |
12X Standard Body Tubes: 3mm Fine-Focus, Coaxial Illumination
 | 1-50487 | 12X Zoom Body Tube, 3mm Fine-Focus
Coaxial Illumination | ||
 | 1-50487A | 12X Zoom Body Tube, 3mm Fine-Focus Coaxial Illumination, Aperture | ||
 | 1-50487D | 12X Zoom Body Tube, 3mm Fine-Focus Coaxial Illumination, Detent | ||
 | 1-50487AD | 12X Zoom Body Tube, 3mm Fine-Focus Coaxial Illumination, Aperture, Detent |
12X Standard Body Tubes: 12mm Fine-Focus
Body Tubes
12X UltraZoom Body Tubes: Non Fine-Focus
 | 1-50502 | 12X UltraZoom Body Tube, Non Fine-Focus | ||
| | 1-50502A | 12X UltraZoom Body Tube, Non Fine-Focus
Aperture | ||
| | 1-50502D | 12X UltraZoom Body Tube, Non Fine-Focus
Detent | ||
| | 1-50502AD | 12X UltraZoom Body Tube, Non Fine-Focus
Aperture, Detent |
12X UltraZoom Body Tubes: 12mm Fine-Focus
 | 1-50504 | 12X UltraZoom Body Tube, 12mm Fine-Focus | ||
 | 1-50504A | 12X UltraZoom Body Tube, 12mm Fine-Focus
Aperture | ||
 | 1-50504D | 12X UltraZoom Body Tube, 12mm Fine-Focus
Detent | ||
 | 1-50504AD | 12X UltraZoom Body Tube, 12mm Fine-Focus
Aperture, Detent |
12X UltraZoom Body Tubes: Non Fine-Focus with Coaxial Illumination
 | 1-51139 | 12X UltraZoom Body Tube, Non Fine-Focus Coaxial Illumination | ||
| | 1-51139A | 12X UltraZoom Body Tube, Non Fine-Focus
Coaxial Illumination, Aperture | ||
| | 1-51139D | 12X UltraZoom Body Tube, Non Fine-Focus Coaxial Illumination, Detent | ||
| | 1-51139AD | 12X UltraZoom Body Tube, Non Fine-Focus Coaxial Illumination, Aperture, Detent |
12X UltraZoom Body Tubes: 3mm Fine-Focus with Coaxial Illumination
 | 1-50503 | 12X UltraZoom Body Tube, 3mm Fine-Focus Coaxial Illumination | ||
| | 1-50503A | 12X UltraZoom Body Tube, 3mm Fine-Focus
Coaxial Illumination, Aperture | ||
| | 1-50503D | 12X UltraZoom Body Tube, 3mm Fine-Focus
Coaxial Illumination, Detent | ||
| | 1-50503AD | 12X UltraZoom Body tube, 3mm Fine-Focus
Coaxial Illumination, Aperture, Detent |
Straight
Adapters
C-Mount Camera Adapter
F-Mount Camera Adapters
Standard Adapters
 | 1-60439 | 0.5X Standard Adapter | ||
 | 1-6020 | 0.67X Standard Adapter | ||
 | 1-6015 | 1.0X Standard Adapter | ||
 | 1-6218 | 1.0X Adjustable Adapter – Telescoping | ||
 | 1-6030 | 2.0X Standard Adapter | ||
 | 1-6105 | 5.0X Standard Adapter |
Mini Adapters
 | 1-62629 | 0.5X Mini Adapter – Telescoping | ||
 | 1-61001 | 0.67X Mini Adapter – Telescoping | ||
 | 1-61400 | 1.0X Mini Adapter – No thread Standard Back Focus Adjustment | ||
 | 1-61387 | 1.33X Mini Adapter – Telescoping | ||
 | 1-62136 | 2.0X Mini Adapter | ||
| | 1-61390 | 2.0X Mini Adapter – Telescoping |
Short Adapters
90°
Adapters
Standard Inverting Right-Angle Adapters
 | 1-6187 | 5.0X Inverting Right Angle Adapter | ||
 | 1-6120 | 2.0X Inverting Right Angle Adapter | ||
 | 1-6118 | 1.0X Inverting Right Angle Adapter | ||
 | 1-61997 | 1.0X Inverting Right Angle Adapter – Telescoping | ||
 | 1-60060 | 0.71X Inverting Right Angle Adapter | ||
 | 1-63218 | 2X F-mount Adapter Tube for Right Angle |
Non-Inverting Right-Angle Adapters
 | 1-60188 | 5.0X Non Inverting Right Angle Adapter | ||
 | 1-60185 | 2.0X Non-Inverting Right Angle Adapter | ||
 | 1-60175 | 1.0X Non Inverting Right Angle Adapter | ||
 | 1-60182 | 1.0X Non Inverting Right Angle Adapter – Telescoping | ||
 | 1-60172 | 0.67X Non Inverting Right Angle Adapter |
Right-Angle Adapter Accessories
Standard
Attachments
12X Zoom Standard Attachments
 | 1-50015 | 2.0X Lens Attachment – 2 element | ||
 | 1-50012 | 0.5X Lens Attachment | ||
 | 1-50014 | 1.5X Lens Attachment | ||
 | 1-50013 | 0.75X Lens Attachment | ||
 | 1-50011 | 0.25X Lens Attachment | ||
 | 2-50145 | 1″ Spacer for External Coax Illumination
For use with 1-50223 or 1-50224 Illuminators | ||
 | 1-51490 | RIght Angle Lens Attachment
For use with 1-50012, 1-50013, 1-50014 | ||
 | 1-50993 | 12X Zoom for use with Telecentric Attachment | ||
 | 1-50694 | 12X Telecentric Zoom Attachment, Straight, Non Coax | ||
 | 1-50387 | 12X Telecentric Zoom Attachment, Straight w/ Coax |
Telecentric
System
The 12x Telecentric zoom system allows users to reach a true telecentric condition to within 0.4 degrees while maintaining constant perspective and magnification. Ideal for a wide range of applications, including precise dimensional measurement of objects or pattern recognition.
Telecentric Attachments
There are two telecentric adapters available for use with the special 12X Zoom Lens, Straight (no coax) and straight with coax. Each has a working distance of 188mm. Magnifications range from 0.16X to 1.94X with the upper 1X Adapter and 0.32X to 3.88X with the 2X Adapter. Maximum field of view is 50mm.
12X Zoom Telecentric System
and
Mounts

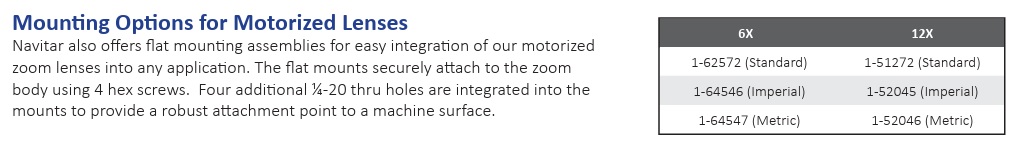

12X Zoom Adapter Plates and Mounts
 | 1-50226 | B&L/Leica Adapter Plate for 12X | ||
 | 1-51272 | Flat Mount for Use with 12X Zoom Motorized | ||
 | 1-50230 | 84 mm Adapter Plate for 12X Meiji Adapter | ||
 | 1-50228 | 76 mm Adapter Plate for 12X | ||
 | 1-6270 | Universal Mounting Clamp Use on Adapter Tubes | ||
 | 1-52045 | 12X Flat Mount Assembly – Imperial | ||
 | 1-52046 | 12X Flat Mount Assembly – Metric |
12XUltraZoom
NIR
12X Zoom IR Body Tubes
 | 1-50330-IR | 12X Zoom, Non Fine Focus, Infrared
| ||
| | 1-50330A-IR | 12X Zoom, Non Fine Focus, Infrared Aperture | ||
 | 1-50487-IR | 12X Zoom, 3 mm Fine Focus, Infrared Coaxial Illumination | ||
 | 1-50486-IR | 12X Zoom, 12 mm Fine Focus, Infrared | ||
 | 1-50486AD-IR | 12X Zoom, 12 mm Fine Focus, Infrared
Aperture, Detent |
12X UltraZoom IR Body Tubes
| | 1-50502-IR | 12x UltraZoom, Non FF, Infrared | ||
 | 1-50503-IR | 12X UltraZoom, 3 mm FF, Coax, Infrared | ||
| | 1-50503D-IR | 12X UltraZoom, 3 mm FF, Coax, Detent, Infrared | ||
 | 1-50504-IR | 12X UltraZoom, 12 mm FF, Infrared |
12X Zoom IR Adapters
 | 1-62922-IR | 2X F-mount Adapter Tube, Infrared | ||
| | 1-63218-IR | 2X F-mount Adapter Tube for Right Angle, Infrared | ||
| | 1-60439-IR | 0.5X Standard Adapter, Infrared | ||
| | 1-61001-IR | 0.67X Mini Adapter, Telescoping, Infrared | ||
| | 1-60172 | 0.67X Non Inverting Right Angle Adapter, Infrared | ||
| | 1-60182 | 1.0X Non Inverting Right Angle Adapter, Infrared | ||
 | 1-60189-IR | 1.0X Mini Adapter, Infrared | ||
 | 1-61390-IR | 2.0X Mini Adapter, Telescoping, Infrared | ||
| | 1-60185-IR | 2.0X Non Inverting Right Angle Adapter, Infrared | ||
 | 1-60165 | Non Inverting Right Angle Mount w/ Prism, Infrared |
12X Zoom IR Attachments
| | 1-50013-IR | 0.75X Lens Attachment, Infrared | ||
| | 1-50014-IR | 1.5X Lens Attachment, Infrared | ||
| | 1-50015-IR | 2.0X Lens Attachment – 2 element, Infrared | ||
| | 1-50011-IR | 0.25X Lens Attachment, Infrared | ||
| | 1-50012-IR | 0.5X Lens Attachment, Infrared |
12X UltraZoom IR Objectives
DIC
System
Navitar’s DIC (Differential Interference Contrast) modules may be used on any ultra coax version (zoom or non-zoom) of the Ultra Zoom 6000 or 12X UltraZoom Optics. The modules works with object side NAs ranging from 0.05 to 0.50, with optimum performance in the range from 0.15 to 0.4.
Lens attachments, operating in the above range will serve for macro applications. Any infinity corrected objectives designed for incident light will suffice for micro. DIC, when used with reflected light, can often be interpreted as a true three-dimensional representation of the surface geometry. It provides a clear distinction between raised and lowered regions in the specimen.
12X Ultra Zoom & UltraZoom 6000 Differential Interference Contrast Modules
Motorized
Body
Tubes
12X UltraZoom Motorized Body Tubes – Non Fine-Focus
 | 1-51320 | 12X UltraZoom Motorized Body Tube Non Fine-Focus 2-Phase Stepper | ||
 | 1-52021 | 12X UltraZoom Motorized Body Tube Non Fine-Focus 5-Phase Stepper | ||
 | 1-51331 | 12X UltraZoom Motorized Body Tube Non Fine-Focus Encoded Servo |
12X UltraZoom Motorized Body Tubes : Non Fine-Focus with Coaxial Illumination
 | 1-51324 | 12X UltraZoom Motorized Body Tube
Non Fine-Focus, Coaxial Illumination
2-Phase Stepper | ||
 | 1-52023 | 12X UltraZoom Motorized Body Tube
Non Fine-Focus, Coaxial Illumination
5-Phase Stepper | ||
 | 1-51332 | 12X UltraZoom Motorized Body Tube
Non Fine-Focus, Coaxial Illumination
Encoded Servo |
12X UltraZoom Motorized Body Tubes : 3 mm MANUAL Fine-Focus with Coaxial Illumination
 | 1-51326 | 12X UltraZoom Body Tube, Motorized Zoom
3 mm MANUAL Fine-Focus, Coaxial Illumination
2-Phase Stepper | ||
 | 1-52019 | 12X UltraZoom Body Tube, Motorized Zoom
3 mm MANUAL Fine-Focus, Coaxial Illumination
5-Phase Stepper | ||
 | 1-51334 | 12X UltraZoom Body Tube, Motorized Zoom 3 mm MANUAL Fine-Focus, Coaxial Illumination
Encoded Servo |
12X UltraZoom Motorized Body Tubes : 3 mm MOTORIZED Fine-Focus with Coaxial Illumination
| | 1-51196 | 12X UltraZoom Body Tube, Motorized Zoom
3 mm Motorized Fine-Focus, Coaxial Illumination
2-Phase Stepper | ||
| | 1-52015 | 12X UltraZoom Body Tube, Motorized Zoom
3 mm Motorized Fine-Focus, Coaxial Illumination 5-Phase Stepper | ||
| | 1-51198 | 12X UltraZoom Body Tube, Motorized Zoom
3 mm Motorized Fine-Focus, Coaxial Illumination Encoded Servo |
12X UltraZoom Motorized Body Tubes : 12 mm MANUAL Fine-Focus with Coaxial Illumination
| | 1-51325 | 12X UltraZoom Body Tube, Motorized Zoom
12 mm MANUAL Fine-Focus, Coaxial Illumination 2-Phase Stepper | ||
| | 1-52017 | 12X UltraZoom Body Tube, Motorized Zoom
12 mm MANUAL Fine-Focus, Coaxial Illumination 5-Phase Stepper | ||
| | 1-51333 | 12X UltraZoom Body Tube, Motorized Zoom
12 mm MANUAL Fine-Focus, Coaxial Illumination Encoded Serve |
12X UltraZoom Motorized Body Tubes : 12 mm MOTORIZED Fine-Focus with Coaxial Illumination
| | 1-51192 | 12X UltraZoom Body Tube, Motorized Zoom
12 mm Motorized Fine-Focus, Coaxial Illumination 2-Phase Stepper | ||
| | 1-52013 | 12X UltraZoom Body Tube, Motorized Zoom
12 mm Motorized Fine-Focus, Coaxial Illumination 5-Phase Stepper | ||
| | 1-51194 | 12X UltraZoom Body Tube, Motorized Zoom
12 mm Motorized Fine-Focus, Coaxial Illumination Encoded Serve |
Motorized
Body
Tubes
12X Zoom Motorized Body Tubes – Non Fine-Focus
 | 1-51314 | 12X Zoom Motorized Body Tube
Non Fine-Focus
2-Phase Stepper | ||
 | 1-52008 | 12X Zoom Motorized Body Tube
Non Fine-Focus
5-Phase Stepper | ||
 | 1-51335 | 12X Zoom Motorized Body Tube
Non Fine-Focus
Encoded Servo |
12X Zoom Motorized Body Tubes : Non Fine-Focus with Coaxial Illumination
 | 1-51318 | 12X Zoom Motorized Body Tube
Non Fine-Focus Coaxial Illumination
2-Phase Stepper | ||
 | 1-52010 | 12X Zoom Motorized Body Tube
Non Fine-Focus Coaxial Illumination
5-Phase Stepper | ||
 | 1-51336 | 12X Zoom Motorized Body Tube
Non Fine-Focus Coaxial Illumination
Encoded Servo |
12X Zoom Motorized Body Tubes : 3 mm MANUAL Fine-Focus
 | 1-51311 | 12X Zoom Motorized Body Tube
3 mm MANUAL Fine-Focus, Coaxial Illumination
2-Phase Stepper | ||
 | 1-52006 | 12X Zoom Motorized Body Tube
3 mm MANUAL Fine-Focus, Coaxial Illumination
5-Phase Stepper | ||
 | 1-51338 | 12X Zoom Motorized Body Tube
3 mm MANUAL Fine-Focus, Coaxial Illumination
Encoded Servo |
12X Zoom Motorized Body Tubes : 3 mm MOTORIZED Fine-Focus with Coaxial Illumination
 | 1-51200 | 12X Zoom Motorized Body Tube
3 mm MOTORIZED Fine-Focus
Coaxial Illumination 2-Phase Stepper | ||
 | 1-52002 | 12X Zoom Motorized Body Tube
3 mm MOTORIZED Fine-Focus
Coaxial Illumination, 5-Phase Stepper, | ||
 | 1-51202 | 12X Zoom Motorized Body Tube
3 mm MOTORIZED Fine-Focus
Coaxial Illumination, Encoded Servo |
12X Zoom Motorized Body Tubes : 12 mm MANUAL Fine-Focus
 | 1-51319 | 12X Zoom Motorized Body Tube
12 mm MANUAL Fine-Focus
2-Phase Stepper | ||
 | 1-52004 | 12X Zoom Motorized Body Tube
12 mm MANUAL Fine-Focus
5-Phase Stepper | ||
 | 1-51337 | 12X Zoom Motorized Body Tube
12 mm MANUAL Fine-Focus
Encoded Servo |
12X Zoom Motorized Body Tubes : 12 mm MOTORIZED Fine-Focus
| | 1-51188 | 12 Zoom Motorized Body Tube
12 mm MOTORIZED Fine-Focus
2-Phase Stepper | ||
| | 1-52000 | 12 Zoom Motorized Body Tube
12 mm MOTORIZED Fine-Focus
5-Phase Stepper | ||
| | 1-51190 | 12 Zoom Motorized Body Tube
12 mm MOTORIZED Fine-Focus
Encoded Servo |
12X Zoom Motorized 5-Phase Cable Harness
DISTANCE
XTENDER
