SPECIFICATIONS

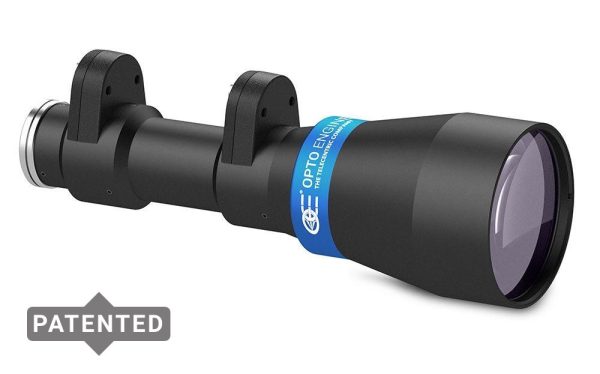

| MODEL | TCZEL23056 |
| Magnification | 0.180x to 0.550x |
| Magnification Ratio | 3.0 |
| Image Circle | 11.0 mm |
| Optics Format | 2/3 inch |
OBJECT FIELD OF VIEW
| 1/3-in Camera | 26.67 x 20.00 mm 8.73 x 6.55 mm |
| 1/2.5 in Camera | 31.67 x 23.78 mm 10.36 x 7.78 mm |
| 1/2-in Camera | 35.56 x 26.67 mm 11.64 x 8.73 mm |
| 1/1.8-in Camera | 39.61 x 29.61 mm 12.96 x 9.69 mm |
| 2/3-in Camera | 47.22 x 39.39 mm 15.45 x 12.89 mm |
ADVANCED OPTICAL SPECIFICATIONS
| Working distance range | 115.0 – 155.0 mm |
| Working ƒ/N | f / 9 f / 16 |
| Telecentricity (max) | < 0.3° < 0.3° |
| Distortion max | < 0.3% < 0.3% |
| Depth of Field | 14.40 mm 2.70 mm |
| Resolution | 32 μm 18 μm |
LIQUID LENS SPECIFICATION
| Number of Lenses | 2 |
| Liquid lens model | Optotune EL-16-40-20D |
| Temperature sensor | Yes |
| Focal power mode | Yes |
| Response time | 5.0 ms |
| Setting time | 25.0 ms |
| Current range | -500 to +500 mA |
| Repeatability using Focal Power Mode | ±0.05 (small steps); ±0.1 (large steps) |
| Lifecycles (10%-90% sinusoidal) | > 1,000,000,000 |
| Connector | Hirose HR10A-7R-6PB |
MECHANICAL
| Camera Mount | C-Mount |
| Phase Adjustment | Yes |
| Filter Thread | none |
| Outer Diameter | 80.0 mm |
| Length | 249.3 mm |
| Mass | 967 g |
ENVIRONMENTAL
| Operating Temperature | 0 to +40°C |
| Storage Temperature | 0 to 50°C |
| Operating Relative Humidity | 20-85% Non-Condensing |
| Installation Environment | Indoor Use ONLY |
