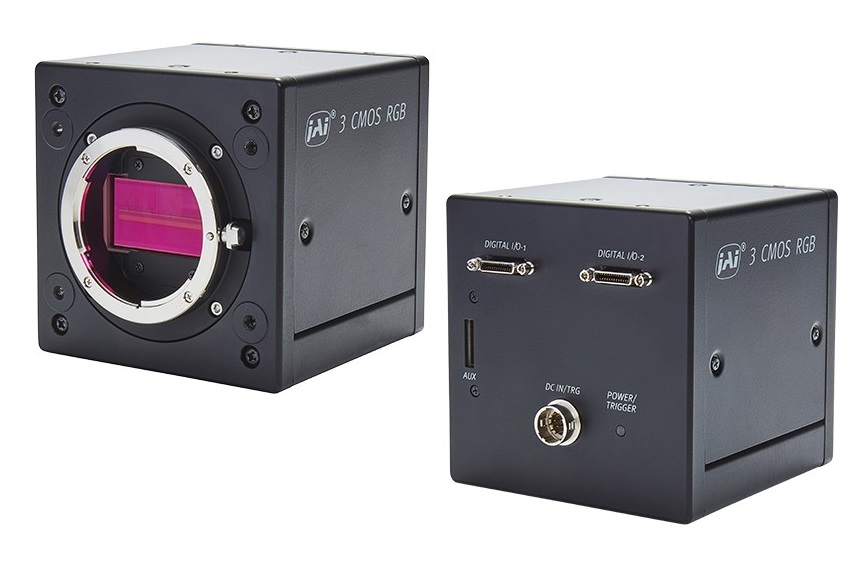

SW-4000T-MCL

SW-4000T-MCL

3-Sensor RGB Color Line-Scan Camera

  • Up to 67.7 kHz Line Rate

  • Selectable 7.5 μm Square or 7.5 μm x 10.5 μm pixel size

  • Low-noise binning with 1×2, 2×1, or 2×2 options

- +
Add to quote

SPECIFICATIONS

Model SW-4000T-MCL
Product Family Sweep Series
Resolution 4,096 x 1 x 3
Pixel Size
 Mode A: 7.5 μm x 7.5 μm
Mode B: 7.5 μm x 10.5 μm
Line Scan Rate (Maximum) 67.7 kHz (Full Camera Link 8-bit config.)
Interface Mini Camera Link
Image Sensor JAI Proprietary 4K CMOS Sensor x 3
COLOR or Monochrome COLOR
Spectral Range Visible
Image Sensor PhotoActive Width 30.72 mm
Lens Mount F-Mount or M52 Mount
Pixel Formats Digital Video Output (Camera Link)
Base: RG8 (Default)
Medium: RGB8, RGB10
Full: RGB8
80bit (Deca): RGB8
Pixel Clock 42.5 / 63.75 / 85 MHz
Trigger Input TTL Input (12-pin and 10-pin)
Camera Link: LVDS (CC1)
Positive / negative logic switchable.
Minimum trigger width: CameraLink 3μs / TTL In 50ns
Exposure Control Exposure Mode : Off (Internal/External trigger)
Exposure Mode : Timed (Internal/External trigger)
Exposure Mode : TriggerWidth
Digital Inputs/Outputs GPIO in/out via 12-pin Hirose connector
Power Input Input Range: DC +12 ~ +24V ± 10% (via Hirose Connector)
Power Consumption

Typical 9.3 W

Maximum: 14.5W
Dimensions (H x W x L) 90 x 90 x 90 mm
Mass 765 g
Operating Temperature -5°C to +45°C
Storage Temperature -25°C to +60°C
Humidity 20 – 80% non-condensing
Vibration 10G (20 Hz to 200 Hz XYZ direction)
Shock 50G
Standards Compliance CE (EN61000-6-2, EN61000-6-3), FCC Part 15 Class B, RoHS/WEEE

OVERVIEW

The SW-4000T-MCL is a 4K prism-based industrial RGB color line scan camera with 4,096 pixels per line and a fast, 67.7 kHz line rate. Its 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications.

Prism Quality at Trilinear Speeds

The SW-4000T-MCL is part of a new generation of high performance 3-CMOS prism line scan cameras. It delivers 4K output at up to 67.7 kHz, making it 4 times faster than previous prism cameras and roughly comparable to the fastest 4K trilinear models.

The Best Images from Any Angle

Prism technology makes it possible to view the red, green and blue channels through a single optical plane. This method eliminates off-angle viewing problems, spatial compensation issues, 3D cylindrical offsets, and other problems that can affect image quality with trilinear cameras.

Advanced Set of Unique Features

The SW-4000T-MCL is one of the only 4K color line scan cameras to offer user-selectable pixel sizes, in-camera color space conversion, and both horizontal and vertical binning. It also supports direct connection to rotary encoders to simplify setup and operation.

OPTICS

OPTICS PARAMETERS






 Horizontal PhotoActive Area (PAA h) 30.720 mm
Vertical PhotoActive Area (PAA v) 7.5 um or 10.5 um
Diagonal PhotoActive Area (PAA diag) na
Image Sensor Resolution 67 line pairs/mm
Rear Flange Distance (for F or M52 Mount) 46.5 mm



I/O Pinout

DOWNLOADS

SW-4000T-MCL Datasheet
SW-4000T-MCL Manual
SW-4000T-MCL CAD File

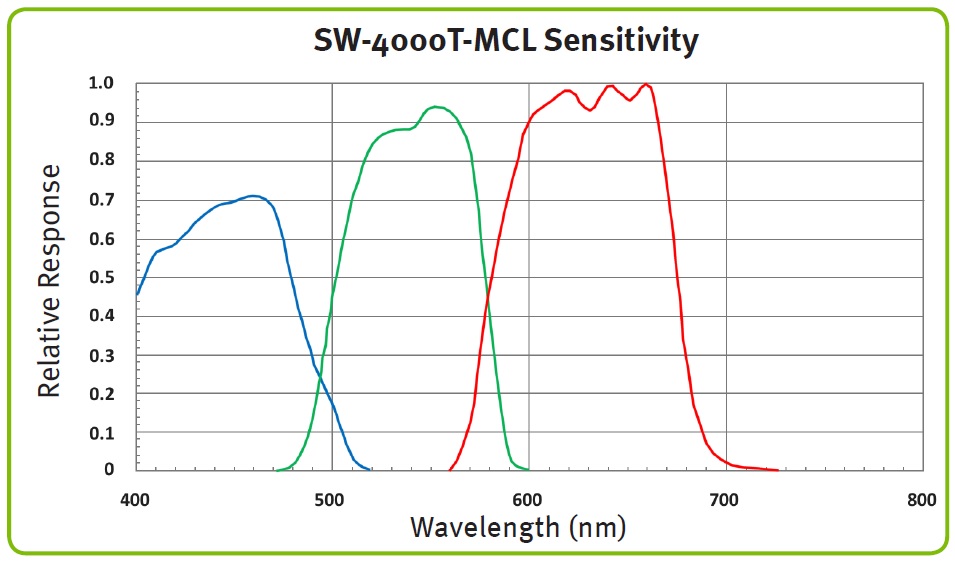

SPECTRAL
