SPECIFICATIONS

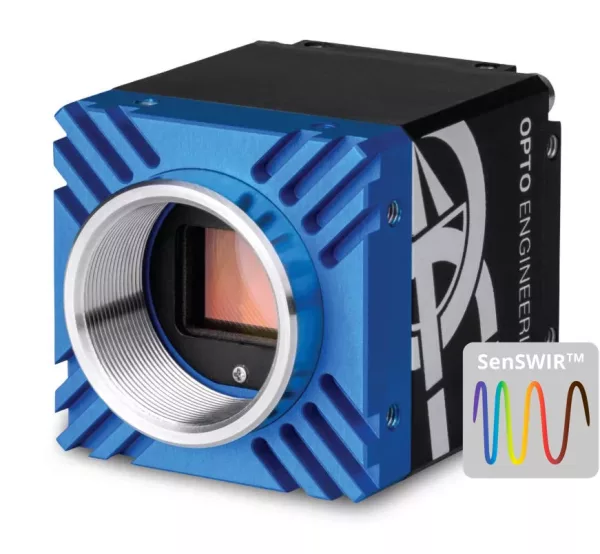

| MODEL | ITA13-GM-10C-SWIR |
| Horizontal Pixels | 1,295 |
| Vertical Pixels | 1,032 |
| Frame Rate | 87.8 frames/sec |
| Burst Frame Rate | 125.2 frames/sec |
| Interface | Gigabit Ethernet (GigE) |

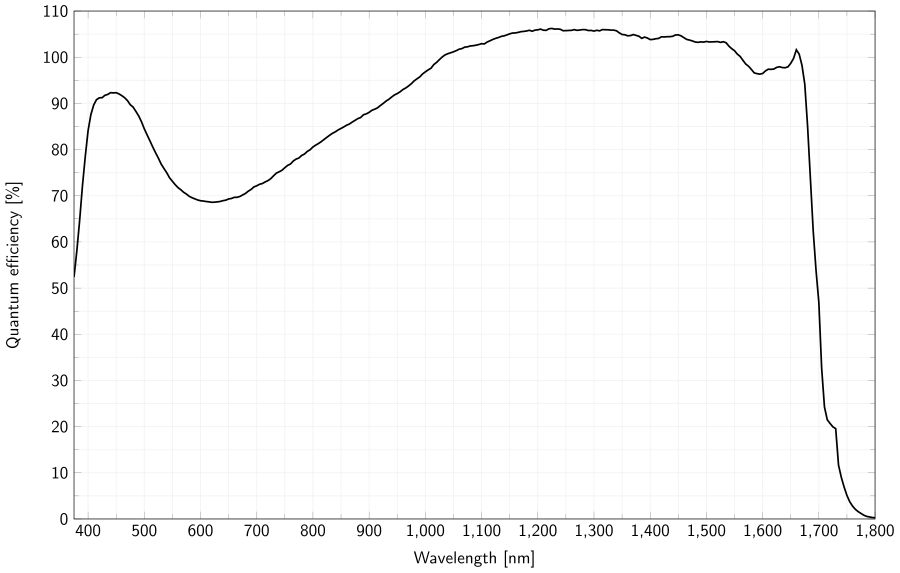

| Spectral Range | Visible Mono + SWIR |
| Image Sensor | SONY IMX990 |
| Pixel Size | 5.00 um |
| Electronic Shutter | GLOBAL |
| Optics Format | 1/2 inch |
| Image Sensor Diagonal | 8.280 mm |
| Lens Mount | C-Mount |
| Pixel Output Formats | Mono 8/10p/10Packed/12p/12Packed |
| Trigger Synchronization | Free run, software trigger, hardware trigger, PTP (IEEE 1588) |
ELECTRICAL
| Power Over Ethernet (POE) Standard | IEEE 802.3af standard |
| Alternative External Power | 12 ~ 24 VDC |
COMPLIANCE & RELIABILITY
| Standards | GigE Vision 2.2, GenICam, GenTL |
| Client software | ITALA View or other GigE Vision 2.x software |
| Operating systems | 64-bit Windows 10/11, Ubuntu 18.04/20.04/22.04 |
| Shock & Vibration (Ruggedness) | EN 60068-2-27, EN 60068-2-6, EN 60068-2-64 |
| Warranty | 5 Years |
