AP-1600T-PMCL

SPECIFICATIONS

Model	AP-1600T-PMCL
Product Family	Apex Series
Interface	Mini Camera Link (PoCL)
Image Sensors	3 x Sony Pregius IMX273 CMOS
Horizontal Pixels	1,456
Vertical Pixels	1,088
Total Pixels	3 x 1.6 MegaPixels
Frame Rate	24.2 f/s
Light Spectrum	3-Bands: Visible
Spectral Range	Visible
Optics Format	1/1.8 inch
Image Sensor PhotoActive Diagonal	6.271 mm
Pixel Size	3.45 μm
Lens Mount	C-mount
Electronic Shutter	Global
Pixel Formats	8/10/12 bit
Frame Synchronization	Free-run Hardware trigger Software trigger
Trigger Input	Low, High, Software, PulseGenerator0-3, UserOutput0-3, Line5-Opt In 1, Line6-Opt In 2, Line7-, CC1, NAND 0 Out, NAND 1 Out
Digital I/O	LineSelector (12P) : GPIO IN / GPIO OUT

ELECTRICAL

Voltage Input: Hirose 12-pin connector

Voltage Imput: Power Over CameraLink (PoCL)

Input Range: +12 VDC to +24 VDC

+10 VDC to +13 VDC

Power Consumption: Hirose 12-pin connector)

Power Consumption: Power Over Ethernet (POE)

6.0 W Typical @ +12 V, 7.6 W Max

6.0 W Typical @ +12 V, 7.4 W Max

MECHANICAL

Case Type	Metal Shielded Box
Case Size (L x W x H)	44.0 mm x 44.0 mm x 84.0 mm
Mass	200 g
Vibration Tolerance	3G (20 Hz to 200 Hz XYZ)
Shock Tolerance	50g

STANDARDS COMPLIANCE

REGULATIONS

CE (EN61000-6-2, EN61000-6-3), FCC Part 15 Class B, RoHS/WEEE

ENVIRONMENTAL

Operating Temperature	-5°C to +45°C
Storage Temperature	-25°C to +60°C
Humidity	20% – 80% non-condensing

OVERVIEW

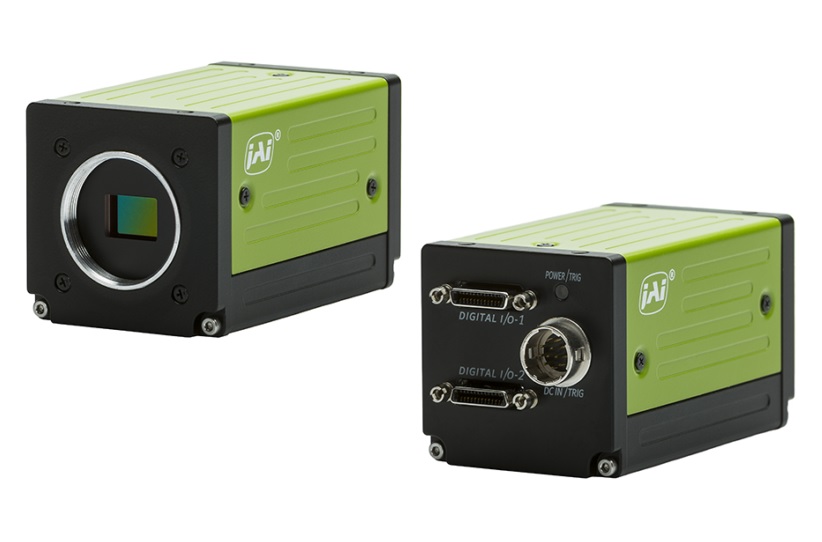

The AP-1600T-PMCL is a 3-CMOS prism-based industrial R-G-B area scan camera delivering 3 x 1.6 megapixels at 126 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications.

Exceptionally Accurate Color Image Data

Using a special prism-based imaging technique, the incoming light is separated into red, green and blue wavelengths, captured by three precisely-aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.

High Resolution Combined with High Frame Rate

The AP-1600T-PMCL is built around three Sony Pregius IMX273 sensors. Combined with a Mini Camera Link interface, this machine vision camera can output as much as 3 x 1.6 megapixels at 126 frames/second in full resolution.

Flexible Color Space Conversion

The AP-1600T-PMCL provides great flexibility in on-board color space conversion: including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion. (sRGB and Adobe RGB color spaces are also supported).

FEATURES

3-CMOS prism-based RGB camera.
3 x IMX273 Sony Pregius sensors.
True raw image data (Red, Green and Blue).
MiniCamera Link interface.
Analog gain and exposure setting for each individual R-G-B channel.
Flexible color space conversion.
Single and Multi-Region-of-Interest (ROI).
Automatic level control.
Shading correction on ROI.
Color temperature presets.
Color enhancer tool.
Pixel binning (2×1, 1×2 and 2×2).
Chunk data for each image.
Robust and compact design (Shock 50G/Vibration 3G).
Compatible with Image-Pro software packages for integration into digital microscopy applications.

SPECTRAL RESPONSE

OPTICS

OPTICS PARAMETERS

	Horizontal PhotoActive Area (PAA h)	5.023 mm
	Vertical PhotoActive Area (PAA v)	3.754 mm
	Diagonal PhotoActive Area (PAA diag)	6.271 mm
	Image Sensor Resolution	145 line pairs/mm
	Effective C-Mount Flange Distance	17.526 mm CAUTION: Maximum Lens Rear Mechanical Protrusion: 4 mm

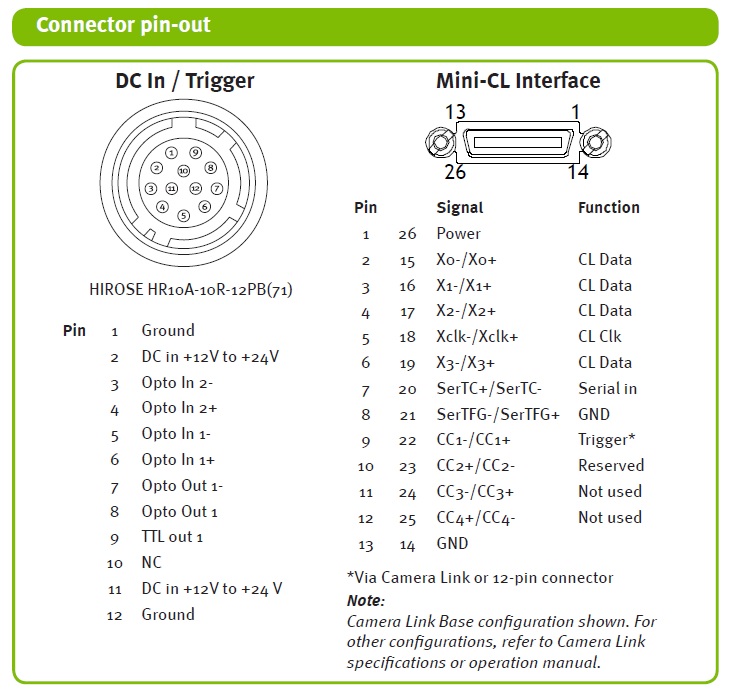

I/O Pinout

DOWNLOADS

Datasheet – AP-1600T-PMCL
Manual – AP-1600T-PMCL
CAD file – AP-3200T-PMCL / AP-1600T-PMCL
Frame Rate Calculator – AP-1600T-PMCL

High Resolution Prism-Based 3 x CMOS Camera

3 x Sony IMX273 Pregius Image Sensors

Visible & Spectral Channels Optically Coupled via Prism

High Speed Mini-CameraLink Intereface

Supports Power Over CameraLink (PoCL)

SPECIFICATIONS

OVERVIEW

Exceptionally Accurate Color Image Data

Using a special prism-based imaging technique, the incoming light is separated into red, green and blue wavelengths, captured by three precisely-aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.

High Resolution Combined with High Frame Rate

The AP-1600T-PMCL is built around three Sony Pregius IMX273 sensors. Combined with a Mini Camera Link interface, this machine vision camera can output as much as 3 x 1.6 megapixels at 126 frames/second in full resolution.

Flexible Color Space Conversion

The AP-1600T-PMCL provides great flexibility in on-board color space conversion: including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion. (sRGB and Adobe RGB color spaces are also supported).

FEATURES

3-CMOS prism-based RGB camera.

3 x IMX273 Sony Pregius sensors.

True raw image data (Red, Green and Blue).

MiniCamera Link interface.

Analog gain and exposure setting for each individual R-G-B channel.

Flexible color space conversion.

Single and Multi-Region-of-Interest (ROI).

Automatic level control.

Shading correction on ROI.

Color temperature presets.

Color enhancer tool.

Pixel binning (2×1, 1×2 and 2×2).

Chunk data for each image.

Robust and compact design (Shock 50G/Vibration 3G).

Compatible with Image-Pro software packages for integration into digital microscopy applications.

SPECTRAL RESPONSE

OPTICS

I/O Pinout
