new! TX Series
Square-Framed Ring Lights
The latest edition to the Metaphase TX Series of products comes in the form of an ultra compact, yet extremely flexible, square ring light.
These lights were designed with the same standard T-slot mounting hardware found on all other TX series products, and provide three main port sizes to choose from over two frame sizes.
Also included are a bright and highly uniform array of LED’s driven by state-of-the-art driver technology delivering instant start-up and flicker free operation that can be used both in DC continuous mode, or with 8x OpticalPulse-Follow Strobe.
AVAILABLE WAVELENGTHS
| Power Source | 24VDC +/-5% |
| 0 – 10V Analog Intensity Control | Integral |
| Cable (Typical) | 10 ft / (3.05 m) cable with flying leads |
| Housing | Black Anodized Aluminum |
| Cooling | Passive |
| Ambient Temperature | -20 °C to 40 °C |
| Lifetime Expectancy | 75,000 hours (except UV) |
Features
Visible, UV, IR, SWIR, SingleColor, Multispectral, Hyperspectral (with individual dimming)
Various lensing, diffuser, polarizer, wavelength, size, and connection types available
24 DVC input, dimming capability, and follow-me strobe 8x Overdrive
A homogenous light output that provides high-intensity ON-axis illumination
- 25-mm, low profile, standard extruded frame for flexible mounting options in a rugged package
An ideal light with many applications including, label Identification, part markings, surface inspection, etc.
- Convenient Standard 5-pin, M12, quick connect, connection port

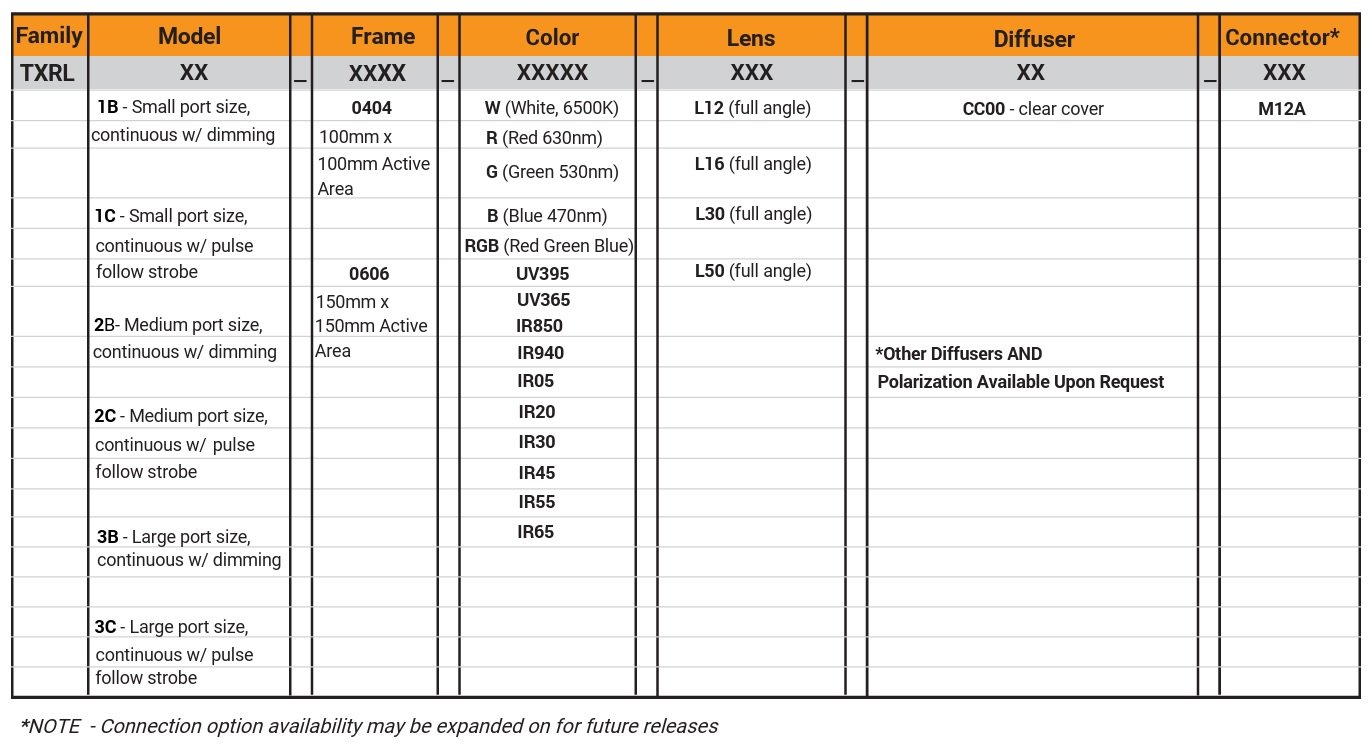

TX Series Bright Field Ring Light – Part Number Guide
| TXRL1-0404 Mechanical Drawing (other models are on the Downloads tab) |
| TXRL1-0404 |
| DRIVER OPTIONS |
Metaphase offers many Driver options to customize our lights to any specific application. Most Drivers are available in both Built-In (BI) and In-Line (IL) configurations and include features for Intensity Control, Triggering, Strobing, compatibility with LED Controllers such as the ULC-2 and other third-party controllers; Keyence and Trinity. Other Drivers offered are unique for compatibility with Cognex and Baumer cameras. These options provide greater flexibility, control, and convenience when integrating Metaphase illumination systems. All drivers will not be compatible with every light of every size. |
| DESCRIPTION | |
| 24CV | 24V, Constant Voltage |
| 24Z | 24V, Constant Current with 0-10V Intensity Control |
| 24NZ | 24V, Constant Current with No 0-10V Intensity Control |
| 24-BIS100 | 24V, Built-In Strobe, 100µs |
| 24-BIS250 | 24V, Built-In Strobe, 250µs |
| 24-BIS300 | 24V, Built-In Strobe, 300µs |
| 24Z-TRG | 24V, Built-In Trigger with 0-10V Intensity Control |
| 24Z-FTRG | 24V, Built-In Fast Trigger with 0-10V Intensity Control |
| 24-ILD | 24V, In-Line Dimmer |
| 24-ILD2,3,4,5 | 24V, In-Line Dimmer 2, 3, 4 or 5 Channel |
| 24-ILDT | 24V, In-Line Dimmer with Trigger |
| 24-ILDT2,3,4,5 | 24V, In-Line Dimmer with Trigger 2, 3, 4 or 5 Channel |
| 24-ILDFT | 24V, In-Line Dimmer with Fast Trigger |
| 24-ILZ | 24V, In-Line 0-10V Intensity Control |
| 24-ILZ2,3,4,5 | 24V, In-Line 0-10V Intensity Control, 2, 3, 4 or 5 Channel |
| 24-ILNZ | 24V, In-Line Constant Current with No 0-10V Intensity Control |
| 24-ILT | 24V, In-Line Trigger |
| 24-ILT2,3,4,5 | 24V, In-Line Trigger, 2, 3, 4 or 5 Channel |
| 24-ILFT | 24V, In-Line Fast Trigger |
| 24-ILFT2,3,4,5 | 24V, In-Line Fast Trigger, 2, 3, 4 or 5 Channel |
| 24-ILZT | 24V, In-Line 0-10V Intensity Control with Trigger |
| 24-ILZT2,3,4,5 | 24V, In-Line 0-10V Intensity Control with Trigger 2, 3, 4 or 5 Channel |
| 24-ILS50 | 24V, In-Line Strobe, 50µs |
| 24-ILS100 | 24V, In-Line Strobe, 100µs |
| 24-ILS250 | 24V, In-Line Strobe, 250µs |
| 24-ILS300 | 24V, In-Line Strobe, 300µs |
| 24-ILS500 | 24V, In-Line Strobe, 500µs |
| 24-ILS700 | 24V, In-Line Strobe, 700µs |
| 24-ILS1000 | 24V, In-Line Strobe, 1000µs |
| 24-ILS1500 | 24V, In-Line Strobe, 1500µs |
| U | Universal LED Controller (ULC) Compatible |
| U2 | Universal LED Controller (ULC) Compatible, Dual |
| TRN | TRINITY Controllers Compatible |
| COG | COGNEX Cameras Compatible |
| BMR | BAUMER Cameras Compatible |
| KEY | DESCRIPTION |
| BC | Female Barrel Connector |
| M8A | Male M8 A-Code 4-Position |
| BM8A | Bulkhead Male M8 A-Code 4-Position |
| M12A, M12D | Male M12 A-code 5-Position |
| BM12A | Bulkhead Male M12 A-code 5-Position |
| BM12D | Bulkhead Male M12 D-Code 5-Position |
| M12T | Male M12 T-Code 4-Position |
| BM12T | Bulkhead Male M12 T-Code 4-Position |
| M12Y | Male M12 Y-Code 8-Position |
| BM12Y | Bulkhead Male M12 Y-Code 8-Position |
| T30 | Bulkhead Male (Turck RSF30) 3-Position |
| BT30 | Bulkhead Male (Turck RSF30) 3-Position |
| DB9 | Male D-Subminiature 9-Position |
| DB15 | Male D-Subminiature 15-Position |
| KEY | KEYENCE Controllers Compatible |
| TX Series Ring Light Datasheet |  | |||
| TXRL1 Mechanical Drawing (4″ x 4″) | | |||
| TXRL2 Mechanical Drawing (6″ x 6″) | | |||
| TXRL3 Mechanical Drawing (6″ x 6″) | |
Preliminary Mechanical Drawings are provided above. Please CONTACT RITCAM for additional CAD drawings.
