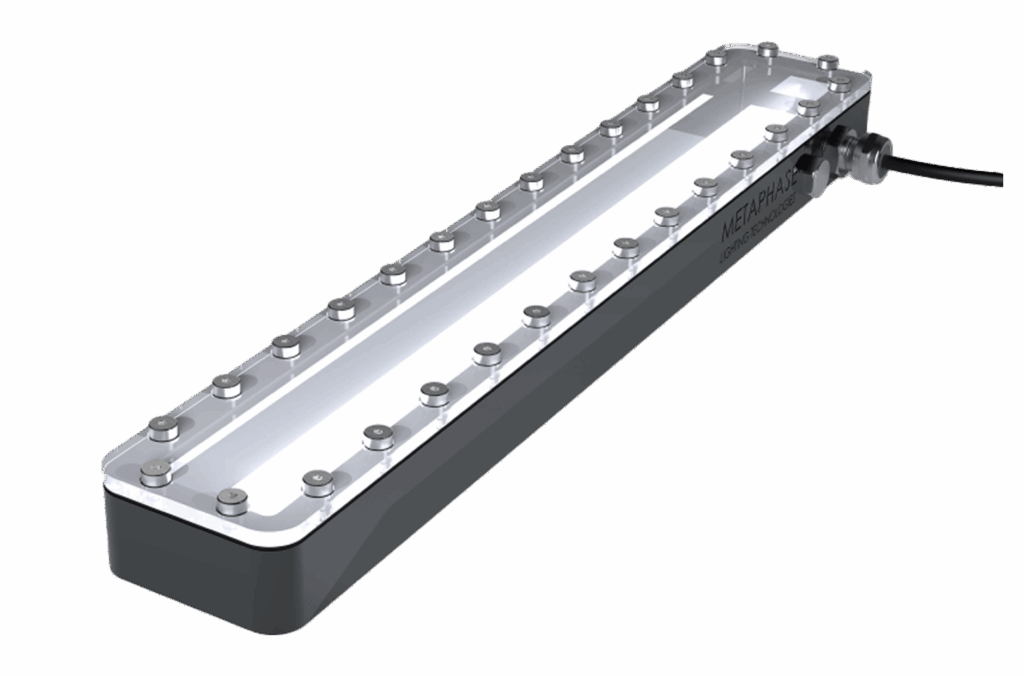

RBL Series

IP69K Rated Bar Lights

The latest edition of the RBL Robolight series is available in Aluminum or Stainless Steel, with both versions carrying a standard IP-69K washdown rating.



This indicates the RBL is completely dust-proof and able to endure high-pressure water or low-strength acetic acid spray commonly used in food processing applications.



This light is designed for the harshest of environments, while maintaining all the features, control, and wavelengths, you expect from Metaphase.

AVAILABLE WAVELENGTHS

Power Source24VDC +/-5%
0 – 10V Analog Intensity ControlIntegral
Cable (Typical)10 ft / (3.05 m) cable with flying leads
HousingBlack Anodized Aluminum
CoolingPassive
Ambient Temperature-20 °C to 40 °C
Lifetime Expectancy75,000 hours (except UV)

Features



  • High Intensity LEDs

  • Lumiform diffuser produces uniform lighting

  • 24V version has a built-in constant current driver(s) provides consistent illumination output

  • Continuous and Strobe versions with power-boosting available

  • 24V version requires no special controllers

  • 24V version is compatible with DDC-3 and ILD-35 Dimmers

  • The -U version is compatible with ULC-2 and third-party constant-current controllers

  • More stable than and outperforms fluorescent tubes by 3X

  • Features a swivel style bracket to allow easy positioning from 0-180º

  • CE, RoHS compliant

  • Compact robust packaging, no glass

ISO2 Series Front Lights

MB-RL301  Mechanical Drawing (other models are on the Downloads tab)
RL301-1 Mechanical Drawing

DRIVER OPTIONS

Metaphase offers many Driver options to customize our lights to any specific application. Most Drivers are available in both Built-In (BI) and In-Line (IL) configurations and include features for Intensity Control, Triggering, Strobing, compatibility with LED Controllers such as the ULC-2 and other third-party controllers; Keyence and Trinity. Other Drivers offered are unique for compatibility with Cognex and Baumer cameras. These options provide greater flexibility, control, and convenience when integrating Metaphase illumination systems.

All drivers will not be compatible with every light of every size.

 DESCRIPTION
24CV24V, Constant Voltage
24Z24V, Constant Current with 0-10V Intensity Control
24NZ24V, Constant Current with No 0-10V Intensity Control
24-BIS10024V, Built-In Strobe, 100µs
24-BIS25024V, Built-In Strobe, 250µs
24-BIS30024V, Built-In Strobe, 300µs
24Z-TRG24V, Built-In Trigger with 0-10V Intensity Control
24Z-FTRG24V, Built-In Fast Trigger with 0-10V Intensity Control
24-ILD24V, In-Line Dimmer
24-ILD2,3,4,524V, In-Line Dimmer 2, 3, 4 or 5 Channel
24-ILDT24V, In-Line Dimmer with Trigger
24-ILDT2,3,4,524V, In-Line Dimmer with Trigger 2, 3, 4 or 5 Channel
24-ILDFT24V, In-Line Dimmer with Fast Trigger
24-ILZ24V, In-Line 0-10V Intensity Control
24-ILZ2,3,4,524V, In-Line 0-10V Intensity Control, 2, 3, 4 or 5 Channel
24-ILNZ24V, In-Line Constant Current with No 0-10V Intensity Control
24-ILT24V, In-Line Trigger
24-ILT2,3,4,524V, In-Line Trigger, 2, 3, 4 or 5 Channel
24-ILFT24V, In-Line Fast Trigger
24-ILFT2,3,4,524V, In-Line Fast Trigger, 2, 3, 4 or 5 Channel
24-ILZT24V, In-Line 0-10V Intensity Control with Trigger
24-ILZT2,3,4,524V, In-Line 0-10V Intensity Control with Trigger 2, 3, 4 or 5 Channel
24-ILS5024V, In-Line Strobe, 50µs
24-ILS10024V, In-Line Strobe, 100µs
24-ILS25024V, In-Line Strobe, 250µs
24-ILS30024V, In-Line Strobe, 300µs
24-ILS50024V, In-Line Strobe, 500µs
24-ILS70024V, In-Line Strobe, 700µs
24-ILS100024V, In-Line Strobe, 1000µs
24-ILS150024V, In-Line Strobe, 1500µs
UUniversal LED Controller (ULC) Compatible
U2Universal LED Controller (ULC) Compatible, Dual
TRNTRINITY Controllers Compatible
COGCOGNEX Cameras Compatible
BMRBAUMER Cameras Compatible

KEYDESCRIPTION
BCFemale Barrel Connector
M8AMale M8 A-Code 4-Position
BM8ABulkhead Male M8 A-Code 4-Position
M12A, M12DMale M12 A-code 5-Position
BM12ABulkhead Male M12 A-code 5-Position
BM12DBulkhead Male M12 D-Code 5-Position
M12TMale M12 T-Code 4-Position
BM12TBulkhead Male M12 T-Code 4-Position
M12YMale M12 Y-Code 8-Position
BM12YBulkhead Male M12 Y-Code 8-Position
T30Bulkhead Male (Turck RSF30) 3-Position
BT30Bulkhead Male (Turck RSF30) 3-Position
DB9Male D-Subminiature 9-Position
DB15Male D-Subminiature 15-Position
KEYKEYENCE Controllers Compatible
ExolightTM V2.0 Datasheet
ISO2-5 ( 5″ Light ) Drawings
ISO2-8 ( 8″ Light ) Drawings
ISO2-10 ( 10″ Light ) Drawings
ISO2-12 ( 12″ Light ) Drawings
ISO2-14 ( 14″ Light ) Drawings
ISO2-19 ( 19″ Light ) Drawings
ISO2-20 ( 20″ Light ) Drawings
ISO2-23 ( 23″ Light ) Drawings
ISO2-25 ( 25″ Light ) Drawings
ISO2-27 ( 27″ Light ) Drawings
ISO2-30 ( 30″ Light ) Drawings
ISO2-34 ( 34″ Light ) Drawings
ISO2-42 ( 42″ Light ) Drawings
ISO2-48 ( 48″ Light ) Drawings
ISO2-53 ( 53″ Light ) Drawings
ISO2-57 ( 57″ Light ) Drawings
ISO2-60 ( 60″ Light ) Drawings
ISO2-63 ( 63″ Light ) Drawings
ISO2-68 ( 68″ Light ) Drawings
ISO2-71 ( 71″ Light ) Drawings
ISO2-80 ( 80″ Light ) Drawings
ISO2-86 ( 86″ Light ) Drawings
ISO2-89 ( 89″ Light ) Drawings
ISO2-92 ( 92″ Light ) Drawings
ISO2-96 ( 96″ Light ) Drawings
ISO2-100 ( 100″ Light ) Drawings
ISO2-119 ( 119″ Light ) Drawings
ISO2-132 ( 132″ Light ) Drawings
