VLG-12C

High-Speed VGA Resolution CMOS Camera

  • 640 x 480 Pixels at 595 frames/sec
  • Global Electronic Shutter
  • 4.8 um Square Pixels
  • GigE Interface – Up to 100 meters via Standard Network Cable
  • Robust Mechanical Design for Factory Environment
  • Convenient M12 Connectors for Power and I/O






$ 499.00

Specifications

MODEL VLG-12C
Part Number 11099355
COLOR or Monochrome COLOR
Interface Gigabit Ethernet
Total Pixels 1.2 MegaPixels
Horizontal Resolution 1288
Vertical Resolution 960
Pixel Size 3.75
Full Frame Rate 42 fps
Burst Mode Frame Rate N/A
Image Sensor Sony ICX445
Electronic Shutter Global shutter
Pixel Output Formats
Mono8
BayerRG8
BayerRG12
RGB8 Packed
BGR8 Packed
YUV411 Packed
YUV422 Packed
YUV444 Packed
Optics Format 1/3 – inch
Lens Mount C-mount
Digital I/O 1 input line
3 output lines
I/O Connector
SACC-DSI-M8FS-3CON-M10-L180 SHSACC-DSI-M 8MS-6CON-L180 SH



Supply voltage 12 … 24 V DC (external power supply)
36 … 57 V DC (Power over Ethernet)
Current consumption 300 ma
Power Consumption
approx. 3,6 W @ 12 VDC and 42,0 fps
approx. 3,8 W @ 48 VDC (PoE) and 42,0 fps



Operating Temperature  +5C to +50C
Operating Humidity 10% to 90% non-condensing
Protection Class IP 40
Conformity CE
RoHS
EAC

Features

ANALOG CONTROLS Gain (0 … 29 dB)
Offset (0 … 1023 LSB 14 Bit)
SYNCHRONIZATION free running
trigger
TRIGGER SOURCES Hardware
Software
ActionCommand
TRIGGER DELAY 0 … 2 sec, tracking and buffering of up to 512 trigger signals
INTERNAL IMAGE BUFFER 120 MB





OPTICS INFO

PAA H 4.830
PAA V 3.600
PAA diag 6
lp/mm 133

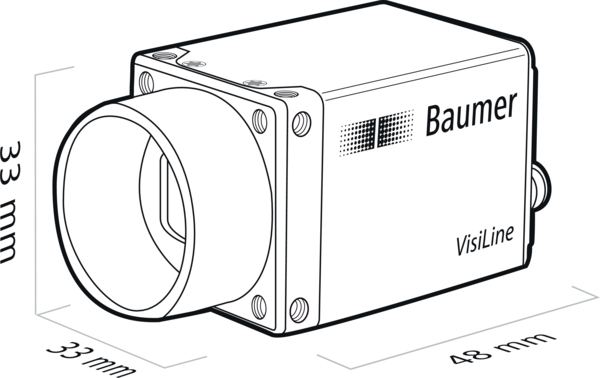

Mechanical

Housing Material zinc die casting, nickel-plated, IP 40
Width 33 mm
Height 33 mm
Depth 48 mm
Mass
≤ 150 g
Lens Mount C-mount

Downloads

You can download the spec file now
