VLG-02C
High-Speed VGA Resolution CMOS Camera
- 640 x 480 Pixels at 595 frames/sec
- Global Electronic Shutter
- 4.8 um Square Pixels
- GigE Interface – Up to 100 meters via Standard Network Cable
- Robust Mechanical Design for Factory Environment
- Convenient M12 Connectors for Power and I/O
Specifications
| MODEL | VLG-02C |
| Part Number | 11099352 |
| COLOR or Monochrome | Color |
| Interface | Gigabit Ethernet |
| Total Pixels | VGA |
| Horizontal Resolution | 656 |
| Vertical Resolution | 490 |
| Pixel Size | 5.6 |
| Full Frame Rate | 160 fps |
| Burst Mode Frame Rate | N/A |
| Image Sensor | Sony ICX618 |
| Electronic Shutter | Global shutter |
| Pixel Output Formats | Mono8
BayerRG8 BayerRG12 RGB8 Packed BGR8 Packed YUV411 Packed YUV422 Packed YUV444 Packed |
| Optics Format | 1/4″ CCD |
| Lens Mount | C-mount |
| Digital I/O | 1 input line
3 output line |
| I/O Connector | SACC-DSI-M8FS-3CON-M10-L180 SH
SACC-DSI-M 8MS-6CON-L180 SH |
| Supply voltage | 12 … 24 V DC (external power supply)
36 … 57 V DC (Power over Ethernet) |
| Current consumption | 283 ma |
| Power Consumption | approx. 3,4 W @ 12 VDC and 160,0 fps approx. 3,7 W @ 48 VDC (PoE) and 160,0 fps |
| Operating Temperature | +5 … +50 °C |
| Operating Humidity | 10 … 90 % (non-condensing) |
| Protection Class | IP 40 |
| Conformity | CE
RoHS EAC |
Features
| ANALOG CONTROLS | Gain (0 … 29 dB)
Offset (0 … 1023 LSB 14 Bit) |
| SYNCHRONIZATION | free running trigger |
| TRIGGER SOURCES | Hardware Software ActionCommand |
| TRIGGER DELAY | 0 … 2 sec, tracking and buffering of up to 512 trigger signals |
| INTERNAL IMAGE BUFFER | 120 MB |
OPTICS INFO
| PAA H | 3.6736 |
| PAA V | 2.744 |
| PAA diag | 5 |
| lp/mm | 89 |

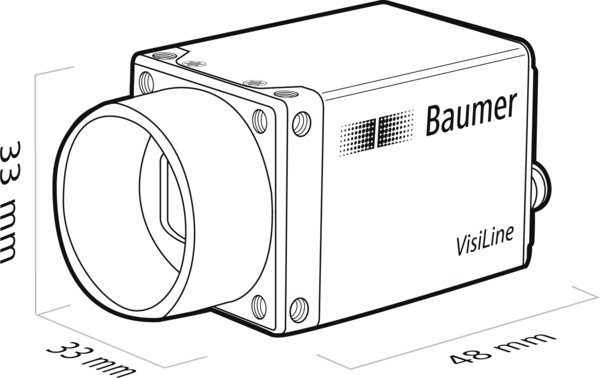

Mechanical
| Housing Material | zinc die casting, nickel-plated, IP 40 |
| Width | 33 mm |
| Height | 33 mm |
| Depth | 48 mm |
| Mass | ≤ 150 g |
| Lens Mount | C-mount |
