VCXU-50MP

High-Speed VGA Resolution CMOS Camera

  • 640 x 480 Pixels at 595 frames/sec
  • Global Electronic Shutter
  • 4.8 um Square Pixels
  • GigE Interface – Up to 100 meters via Standard Network Cable
  • Robust Mechanical Design for Factory Environment
  • Convenient M12 Connectors for Power and I/O






$ 499.00

Specifications

MODEL VCXU-50MP
Part Number 11206488
COLOR or Monochrome Mono
Polarized
Interface USB 3.0
Total Pixels 5 Megapixel
Horizontal Resolution 2448
Vertical Resolution 2048
Pixel Size 3.45
Full Frame Rate 73 fps
Burst Mode Frame Rate 77 fps
Image Sensor Sony IMX250MZR
Electronic Shutter Global shutter
Pixel Output Formats Mono
Optics Format 2/3 – inch
Lens Mount C-mount
Digital I/O 1 input line
1 output line
2 general purpose lines
I/O Connector M8  (8-pin)



Supply voltage 5 VDC (via USB3.0 interface)
Current consumption 280 ma
Power Consumption 3.3 W



Operating Temperature  +5C to +65C
Operating Humidity 10% to 90% non-condensing
Protection Class IP-40
Conformity CE
RoHS

Features

ANALOG CONTROLS Gain (0 … 48 dB)
Offset (0 … 255 LSB 12 Bit)
SYNCHRONIZATION free running
trigger
TRIGGER SOURCES Hardware
Software
TRIGGER DELAY 0 … 2 sec, tracking and buffering of up to 256 trigger signals
INTERNAL IMAGE BUFFER 445 MB
31 images (Trigger Mode)
1 image (Free Running Mode)



OPTICS INFO

PAA H 8.446
PAA V 7.066
PAA diag 11.011
lp/mm 144.9

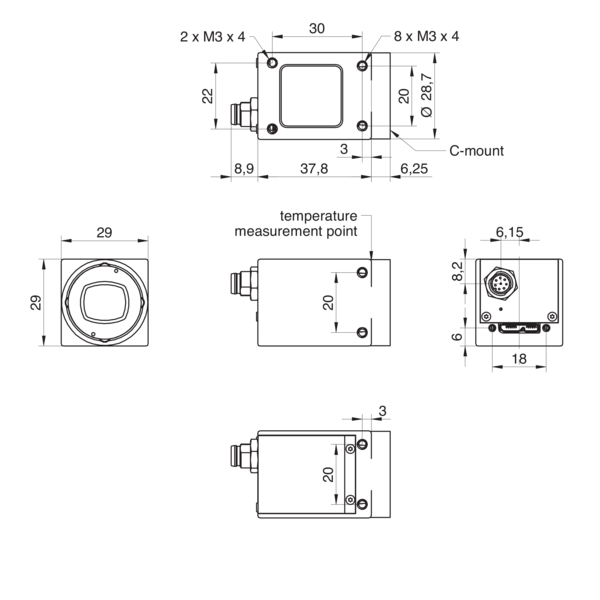

Mechanical

Housing Material Zinc Die Casting, Nickel-Plated
Width 29 mm
Height 29 mm
Depth 38 mm
Mass 90g
Lens Mount C-mount

Downloads

You can download the spec file now
