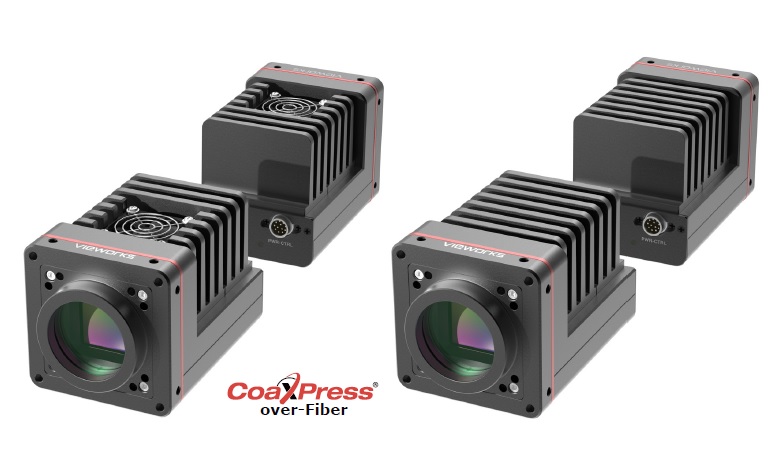

VCS-14MHF-M 670 I

VCS-14MHF-M 670 I

High Speed 14 MP Monochrome CMOS Camera

  • CoaXPress over Fiber Interface

  • Up to 670 f/s (4-channels)

  • Flat Field, DSNU and PRNU Correction

  • Gpixel GSPRINT5514 CMOS Image Sensor

  • Highly-Sensitive Backside Illumination

Add to quote

SPECIFICATIONS

MODEL VCS-14MHF-M 670 I
Horizontal Pixels 4,608
Vertical Pixels 3,072
Maximum Frame Rate 670 f/s (10 bit)
Interface CoaxPress over Fiber
Optical Transceiver 100G QSFP28 SR4
COLOR or Monochrome Monochrome
Image Sensor Gpixel GSPRINT5514
Pixel Size 5.5  um
Electronic Shutter GLOBAL
Dynamic Range 66 dB (12 bits)
Optics Format APS (30.5 mm Diagonal)
Image Sensor Diagonal 30.460 mm
Lens Mount F-Mount or Custom M-Mount
Pixel Output Formats mono 8/10/12
Trigger Synchronization Free-Run, Hardware Trigger, Software Trigger, CXP

ELECTRICAL

External Power Supply Requirements 11 VDC ~ 24 VDC
Power Consumption 26 Watts

MECHANICAL

Length 68.0 mm
Width 68.0 mm
Height 128.4 mm
Mass 1,220 g

ENVIRONMENTAL

Operating Ambient Temperature Range 0℃ ~ 40℃
Storage Temperature Range -40℃ ~ 70℃
Compliance CE, FCC, KC

FEATURES

VCS-14MHF Camera Features

  • High Speed 14 Megapixel CMOS Image Sensor

  • BSI (Backside Illuminated) CMOS Image Sensor

  • CoaXPress 2.0 Interface up to 338 fps at 50 Gbps using 4 Channels

  • Global Shutter CMOS Technology

  • DSNU and PRNU Correction

  • Flat Field Correction

  • Defective Pixel Correction

  • GenICam Compatible – XML based Control

  • Low-gain and high-gain composite image

OPTICS INFO

OPTICS PARAMETERS






 Horizontal PhotoActive Area (PAA h) 25.344 mm
Vertical PhotoActive Area (PAA v) 16.896 mm
Diagonal PhotoActive Area (PAA diag) 30.460 mm
Image Sensor Resolution 90.9 line pairs/mm
Rear Flange Distance 46.5 mm



MECHANICAL

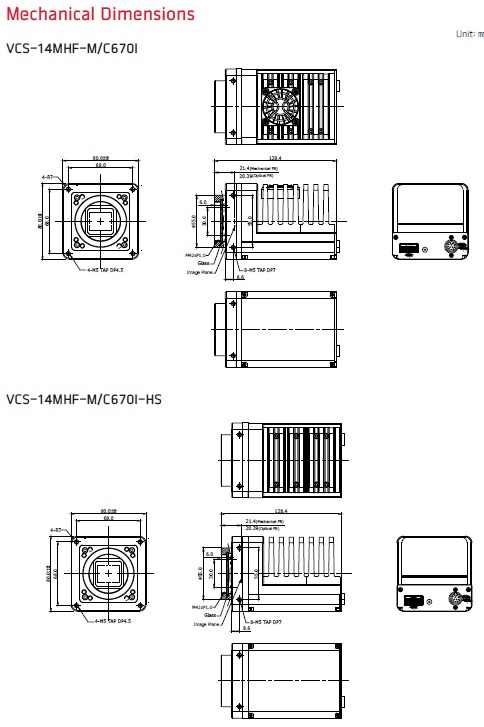

VCS-14MHF SERIES MECHANICAL DRAWINGS (available on spec sheet)

VC Series Mechanical Drawings

DOWNLOADS

VCS 14MX2 SERIES CXP DOWNLOADS

Datasheet_VCS_14MHF_MC670I_Preliminary
