TXG50m3

High-Speed VGA Resolution CMOS Camera

  • 640 x 480 Pixels at 595 frames/sec
  • Global Electronic Shutter
  • 4.8 um Square Pixels
  • GigE Interface – Up to 100 meters via Standard Network Cable
  • Robust Mechanical Design for Factory Environment
  • Convenient M12 Connectors for Power and I/O






$ 499.00

Specifications

MODEL TXG50m3
Part Number 11004411
COLOR or Monochrome Monochrome
Interface Gigabit Ethernet
Total Pixels 5.0 Megapixel
Horizontal Resolution 2448
Vertical Resolution 2050
Pixel Size 3.45
Full Frame Rate Full Frame, 2448 × 2050 px, max. 15 fps
Full Frame HQ, 2448 × 2050 px, max. 7 fps
Burst Mode Frame Rate N/A
Image Sensor Sony ICX625
Electronic Shutter Global shutter
Pixel Output Formats Mono8

Mono12

Mono12 Packed
  2/3 inch
Lens Mount C-mount
Digital I/O 3 input lines (each with Debouncer)

3 output lines
I/O Connector
M8 / 8 pinsM8 / 3 pins



Supply voltage 8 to 30 V DC
Current consumption 250 ma
Power Consumption approx 6.0 W



Operating Temperature  +5C to +50C
Operating Humidity 10% to 90% non-condensing
Protection Class IP 40
Conformity CE

RoHS

FCC

EAC



Features

ANALOG CONTROLS Gain (0 … 20 dB)
Offset (0 … 1023 LSB 14 Bit)
SYNCHRONIZATION free running

trigger

sequencer
TRIGGER SOURCES Hardware

Software

ActionCommand
TRIGGER DELAY 0 … 2 sec, tracking and buffering of up to 512 trigger signals
INTERNAL IMAGE BUFFER 32 MB





OPTICS INFO

PAA H 8.4456
PAA V 7.0725
PAA diag 11
lp/mm 145

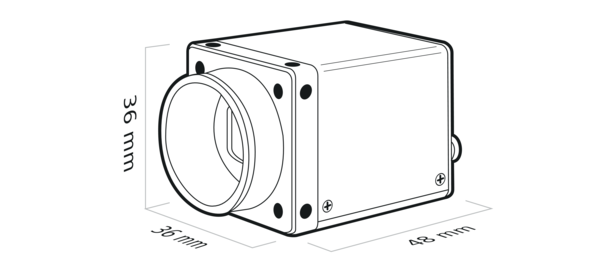

Mechanical

Housing Material aluminum
Width 36 mm
Height 36 mm
Depth 48 mm
Mass ≤ 90 g
Lens Mount C-mount

Downloads

You can download the spec file now
