TXG50c

High-Speed VGA Resolution CMOS Camera

  • 640 x 480 Pixels at 595 frames/sec
  • Global Electronic Shutter
  • 4.8 um Square Pixels
  • GigE Interface – Up to 100 meters via Standard Network Cable
  • Robust Mechanical Design for Factory Environment
  • Convenient M12 Connectors for Power and I/O






$ 499.00

Specifications

MODEL TXG50c
Part Number 11002848
COLOR or Monochrome Color
Interface Gigabit Ethernet
Total Pixels 5 Megapixel
Horizontal Resolution 2448
Vertical Resolution 2050
Pixel Size 3.45
Full Frame Rate
Full Frame, 2448 × 2050 px, max. 15 fps
Full Frame HQ, 2448 × 2050 px, max. 7 fps
Burst Mode Frame Rate N/A
Image Sensor Sony ICX625
Electronic Shutter Global shutter
Pixel Output Formats
Mono8
BayerRG8
  2/3 inch
Lens Mount C-mount
Digital I/O
1 input line (with Debouncer)
1 output line
I/O Connector
M8 / 4 pinsM8 / 3 pins



Supply voltage 8 to 30 V DC
Current consumption 250 ma
Power Consumption approx 6.0 W



Operating Temperature  +5C to +50C
Operating Humidity 10% to 90% non-condensing
Protection Class IP 40
Conformity
CE
KC (R-REI-BkR-TXG50)
RoHS
FCC
EAC



Features

ANALOG CONTROLS Gain (0 … 20 dB)
Offset (0 … 1023 LSB 14 Bit)
SYNCHRONIZATION free running
trigger
TRIGGER SOURCES Hardware
Software
ActionCommand
TRIGGER DELAY 0 … 2 sec, tracking and buffering of up to 512 trigger signals
INTERNAL IMAGE BUFFER 32 MB





OPTICS INFO

PAA H 8.4456
PAA V 7.0725
PAA diag 11
lp/mm 145

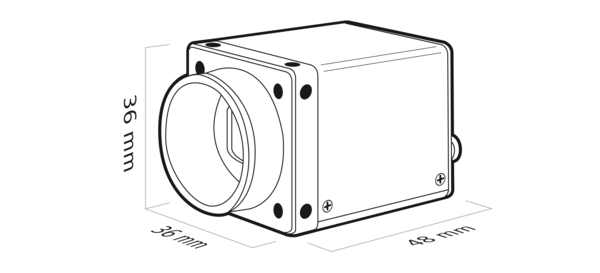

Mechanical

Housing Material aluminum
Width 36 mm
Height 36 mm
Depth 48 mm
Mass ≤ 90 g
Lens Mount C-mount

Downloads

You can download the spec file now
