SPECIFICATIONS

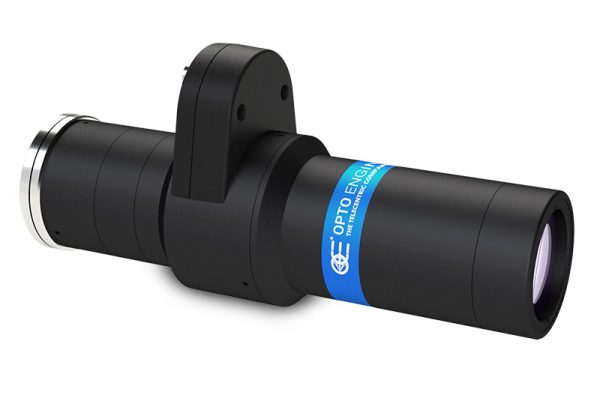

| MODEL | TCEL066 |
| Magnification | 0.670x |
| Magnification Ranges @ -2 dpt to +3 dpt | 0.663x – 0.680x |
| Image Circle | 11.0 mm |
| Optics Format | 2/3 inch |
OBJECT FIELD OF VIEW
| 1/3-in Camera | 7.16 x 5.37 mm |
| 1/2.5 in Camera | 8.51 x 6.39 mm |
| 1/2-in Camera | 9.55 x 7.16 mm |
| 1/1.8-in Camera | 10.64 x 7.96 mm |
| 2/3-in Camera | 12.69 x 10.58 mm |
ADVANCED OPTICAL SPECIFICATIONS
| Working distance | 132.3 mm |
| Working distance range | 146.1 – 112.3 mm |
| Working distance repeatability | ±0.35 (small steps); ±0.7 (large steps) |
| Working ƒ/N | f/12 |
| Telecentricity typical (max) | < 0.04° (0.08°) |
| Telecentricity max | < 0.15° |
| Distortion typical (max) | < 0.1 % (0.2 %) |
| Distortion max | < 0.0.2 |
| Depth of Field | 1.40 mm |
| Resolution | 11 μm |
LIQUID LENS SPECIFICATION
| Liquid lens model | Optotune EL-16-40 |
| Temperature sensor | Yes |
| Focal power mode | Yes |
| Response time | 5.0 ms |
| Setting time | 25.0 ms |
| Current range | -500 to +500 mA |
| Repeatability using Focal Power Mode | ±0.05 (small steps); ±0.1 (large steps) |
| Lifecycles (10%-90% sinusoidal) | > 1,000,000,000 |
| Connector | Hirose HR10A-7R-6PB |
MECHANICAL
| Camera Mount | C-Mount |
| Phase Adjustment | Yes |
| Filter Thread | none |
| Outer Diameter | 37.7 mm |
| Length | 149.3 mm |
| Mass | 408 g |
ENVIRONMENTAL
| Operating Temperature | 0 to +40°C |
| Storage Temperature | 0 to 50°C |
| Operating Relative Humidity | 20-85% Non-Condensing |
| Installation Environment | Indoor Use ONLY |
