SPECIFICATIONS
| Model | SW-4010Q-MCL |
| Product Family | Sweep Series |
| Resolution | 3 x 4096 pixels (R, G, B), 1 x 1024 (SWIR) |
| Pixel Size |
RGB (Visible Band): 7.5 um SWIR: 25.0 um |
| Line Scan Rate (Maximum) | RGB 4K: Up to 20.5 kHz, 2K: Up to 40.8 kHz SWIR: Up to 39.2 kHz |
| Interface | Dual Camera Link Base Output 1. RGB8-bit (RGB10/12-bit with custom pixel format) 2. SWIR8/10/12-bit |
| Pixel Clock (CameraLink) | 42.5 / 63.75 / 85.0 MHz |
| Image Sensors | Proprietary |

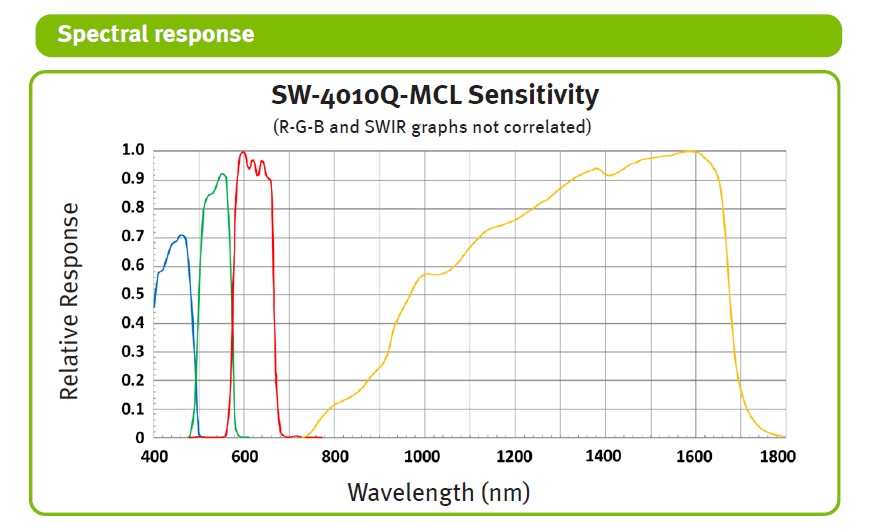

| Spectral Range | Visible RGB, SWIR |
| Image Sensor PhotoActive Width | Visible: 30.72 mm SWIR: 25.600 mm |
| Lens Mount | M52 Mount, Recommended lens JMO-M5231-2828-C4 available (Sold Separately) |
| Pixel Clock | 31.70 / 42.41 / 63.39 / 84.82 MHz adjustable |
| Trigger Inputs | Camera Link, Opto in, TTL via 12-pin, 2 TTL via 10-pin |
| Exposure Control | 3 μs at fastest line rate (RGB), 20.38 μs at fastest line rate (SWIR). Exposure time can be longer at slower line rates. |
| Outputs | 2 TTL via 12-pin, 2 TTL via 10-pin |
| Power Input and Power Consumption | +12V to +24V DC ± 10% (via Hirose Connector) |
| Dimensions (H x W x L) | 90 mm x 90 mm x 120 mm (without connector and lens mount protrusions) |
| Mass | 910 g |
| Operating Temperature | -5°C to +45°C (20 to 80% non-condensing) |
| Storage Temperature | -25°C to +60°C (20 to 80% non-condensing) |
| Vibration | 3G (20 Hz to 200 Hz XYZ direction) |
| Shock | 50G |
| Standards Compliance | CE (EN55032:2015, EN55035:2017 FCC Part 15 Class A, RoHS/WEEE, KC |
