OVERVIEW

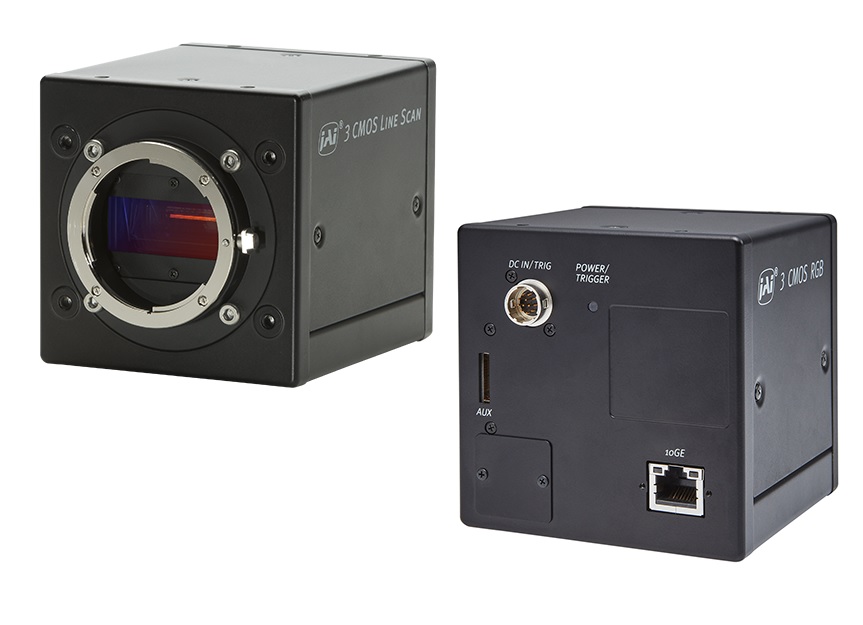

The SW-4000T-10GE is a 4K prism-based industrial RGB color line scan camera with 4,096 pixels per line and a very fast, 97 kHz line rate thanks to a high speed 10 GigE interface.

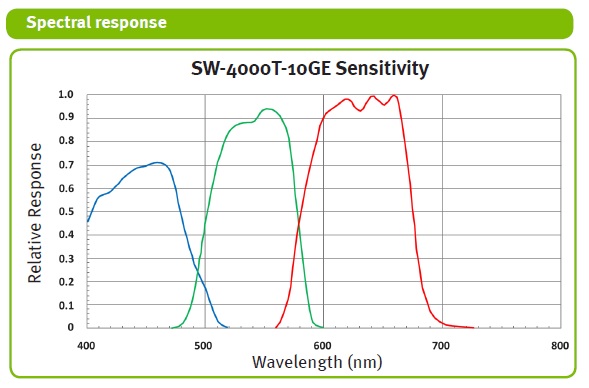

The camera’s 3-CMOS prism design features three separate imagers that simultaneously capture red, green, and blue spectral wavebands. Included is an advanced set of features providing the best possible performance and precision for web-based or continuous color imaging applications. SW-4000TL-10GE is the only high-speed trilinear camera to offer support for both vertical and horizontal binning, as well as built-in color space conversions to HIS and CIEXYZ color gamuts.
Prism Quality with Backward-Compatible 10 GigE interface
The SW-4000T-10GE combines the color accuracy of prism technology with a super fast 10 GigE interface providing true RGB output at up to 97 kHz or YUV output at up to 145 kHz. Intelligent auto-negotiation adjusts to support NBASE-T speeds (5 GigE / 2.5 GigE), as well as traditional 1 Gbps GigE Vision output.
The best Image Quality from Any Angle
Prism technology makes it possible to view the red, green and blue channels through a single optical plane. This method eliminates off-angle viewing problems, spatial compensation issues, 3D cylindrical offsets, and other problems that can affect image quality with trilinear cameras.
Advanced Set of Unique Features
The SW-4000T-10GE is one of the only 4K color line scan cameras to offer user-selectable pixel sizes, in-camera color space conversion, and both horizontal and vertical binning. It also supports direct connection to rotary encoders to simplify setup and operation.
