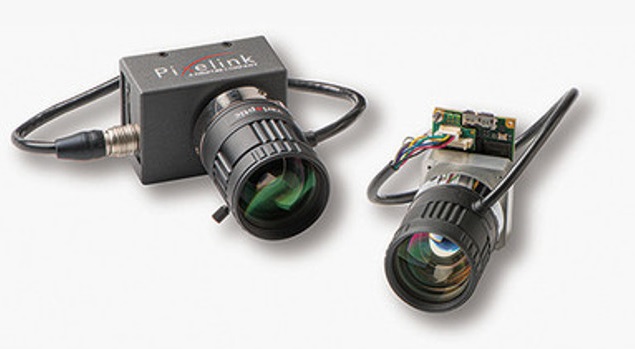

PL-D732MU-AF

PL-D732MU-AF

2.0 MegaPixel Autofocus Camera

  • USB 3.0 Interface

  • CMOSIS CMV2000 CMOS Image Sensor

  • C/CS Lens Mount

SPECIFICATIONS

Model Number PL-X9512MG-T
Image Sensor Sony IMX253
Lens Format 1.1 inch
Image Sensor PhotoActive Diagonal 17.6 mm
Horizontal Pixels 4096
Vertical Pixels 3000
Total Pixels 12.29 MegaPixels
Frame Rate 65 frames/sec
Pixel Size 3.45 um
Color/Monchrome Monochrome

Digital I/O 3 (configurable)
Power Requirement PoE (Power over Ethernet iEEE 802.3af Class 2
or 12 to 24 VDC
Power Consumption 3.2 Watts

MODELS

PL-X9512CG-BL 12.3 MP Board Level Color (Sony IMX253 Sensor) 10 GigE CMOS Camera
PL-X9512CG-T 12.3 MP Enclosed Color (Sony IMX253 Sensor) 10 GigE CMOS Camera with Trigger

MECHANICAL

PL-X9512-T

DOCUMENTATION

INSTALLATION AND USER GUIDES





CAD DRAWINGS




CONFORMITY STATEMENTS





SOFTWARE















LIQUID LENS OPTIONS

  Corning Varioptic C-Mount Edmund Optics Liquid Lens Cx Series Corning Varioptic S-Mount Edmund Optics Liquid Lens S-Mount

EFL mm 12 16 25 35 2.6 9.6 12 16 25 35 2.6 7.5 9.6 6 8 12 16
Format 1.1″ 1.1″ 1.1″ 1.1″ 1/2.5″ 1/4″ – 1/1.8″ 1/2″ 2/3″ 2/3″ 2/3″ 1/2.5″ 1/4″ – 1/2.5″ 1/4″ – 1/1.8″ 1/2″ 1/2″ 1/2″ 1/1.8″
F# f/ 4.7 f/ 3.8  f/ 5 – 22 f/ 5.5 – 22 f/ 2.5 f/ 3.7 f/ 6 f/ 5 f/ 5 f/ 7 f/ 2.5 f/ 2.9 f/ 3.7 f/ 2.4 f/ 2.4 f/ 2.4 f/ 2.4
Focus Range 150 150 220 200 4 70 100 100 150 225 4 70 70 100 150 150 220
mm TO INFINITY TO INFINITY TO INFINITY TO INFINITY
