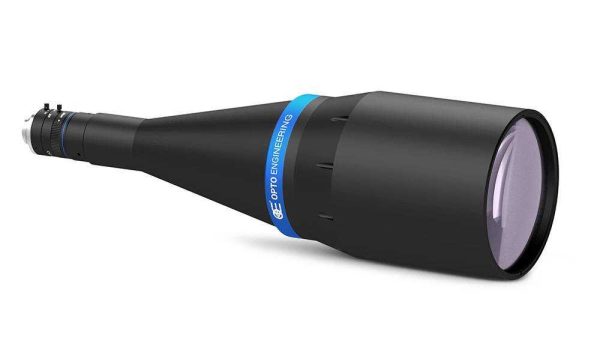

PC12030XS

PC Series

  • 1/2-inch C-Mount Pericentric Lens

  • Full 360-Degree Radial View Using a Single Camera

  • For Object Diameters from 15.0 mm to 52.5 mm

- +

SPECIFICATIONS

MODEL PC12030XS
Optics Format 1/2 inch
Image Circle 4.8 mm
Field of View: Minimum 15.0 x 9.2 mm
Field of View: Maximum 52.5 x 35.3 mm
Working Distance with MINIMUM OBJECT FOV 73.1 mm
Working Distance with MAXIMUM OBJECT FOV 0.0 mm
Angle of View 22 degrees
F-Number f/1.4 to close
Lens Camera Mount C-Mount
Lens Length 381.6 mm
Lens Diameter 116.0 mm
Lens Mass 2,947 g
Download PC12030XS SPEC SHEET

MECHANICAL

20951_0_a




DRAWING DOWNLOADS

PC12030XS Mechanical Drawing
PC12030XS DXF FILE
PC12030XS IGS FILE
PC12030XS STEP FILE
PC12030XS SOLIDWORKS FILE

DOWNLOADS

PRODUCT SPECIFICATIONS

SPECIFICATION SHEET PC12030XS
Product User Guide
Lens Back Focal Adjustment

DRAWINGS AND CAD FILES

PC12030XS Mechanical Drawing
PC12030XS DXF FILE
PC12030XS IGS FILE
PC12030XS STEP FILE
PC12030XS SOLIDWORKS FILE
