MXGC40

High-Speed VGA Resolution CMOS Camera

  • 640 x 480 Pixels at 595 frames/sec
  • Global Electronic Shutter
  • 4.8 um Square Pixels
  • GigE Interface – Up to 100 meters via Standard Network Cable
  • Robust Mechanical Design for Factory Environment
  • Convenient M12 Connectors for Power and I/O






$ 499.00

Specifications

MODEL MXGC40
Part Number 11094944
COLOR or Monochrome Monochrome
Interface Gigabit Ethernet
Total Pixels 4 Megapixel
Horizontal Resolution 2040
Vertical Resolution 2044
Pixel Size 5.5
Full Frame Rate 29 fps
Burst Mode Frame Rate N/A
Image Sensor
ams (CMOSIS) CMV4000
Electronic Shutter Global shutter
Pixel Output Formats
Mono8
Mono12
Mono12 Packed
Optics Format 1 – inch
Lens Mount
C-mount / S-mount (adapter)
Digital I/O 1 input line

3 output line
I/O Connector JSTBM08B-SRSS-TB 8 pins
JSTBM03B-SRSS-TB 3 pins



Supply voltage 12 … 24 V DC (external power supply)

36 … 57 V DC (Power over Ethernet)
Current consumption 300 ma
Power Consumption
approx. 3,6 W @ 12 VDC and 29,0 fps
approx. 3,7 W @ 48 VDC (PoE) and 23,5 fps



Operating Temperature
Depends on the thermal encapsulation (Tmax = 70 °C @ Measurement Point)
Operating Humidity 10 … 90 % (non-condensing)
Protection Class N/A
Conformity CE

RoHS

EAC

Features

ANALOG CONTROLS Gain (0 …18 dB)
Offset (0 … 255 LSB 12 Bit)
SYNCHRONIZATION free running
trigger
TRIGGER SOURCES Hardware
Software
ActionCommand
TRIGGER DELAY 0 … 2 sec, tracking and buffering of up to 512 trigger signals
INTERNAL IMAGE BUFFER 120 MB





OPTICS INFO

PAA H 11.22
PAA V 11.242
PAA diag 16
lp/mm 20

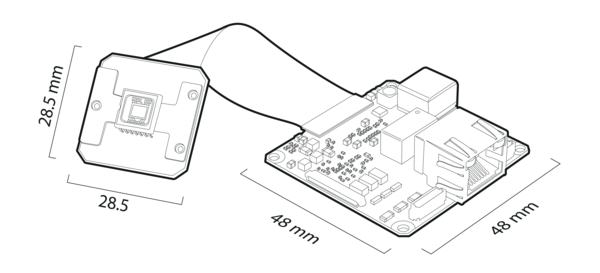

Mechanical

Housing Material
without housing
Width 28,5 mm (sensor print)
48 mm (system print)
Height 28,5 mm (sensor print)
48 mm (system print)
Depth N/A
Mass ≤ 30 g
Lens Mount
C-mount / S-mount (adapter)

Downloads

You can download the spec file now
