SPECIFICATIONS
| MODEL | EL5MP0656 |
| Focal Length | 6.0 mm |
| Magnification (at MOD) | 0.084X |
| Image Circle | 8.9 mm |
| Maximum Optics Format | 1/1.8 inch |
| Working Distance | 60 mm to Infinity |
| f/N | 5.6 |
| Back Focal Length | 7.9 mm |
| Distortion | <4 % |
Angle of View
| 1/3-inch Sensor | 54.0° |
| 1/1.8-inch Sensor | 74.5° |
| 2/3-inch Sensor | n/a |
Field of View (at Minimum Object Distance)
| 1/3-inch Sensor | 57.14 mm x 42.86 mm |
| 1/1.8-inch Sensor | 84.88 mm x 63.45 mm |
| 2/3-inch Sensor | n/a |
LIQUID LENS SPECIFICATION
| Liquid lens model | Optotune EL-3-10 |
| Temperature sensor | Yes |
| Focal power mode | Yes |
| Response time | 1 |
| Setting time | 4 |
| Current range | -120 to +120 mA |
| Lifecycles (10%-90% sinusoidal) | > 1,000,000,000 |

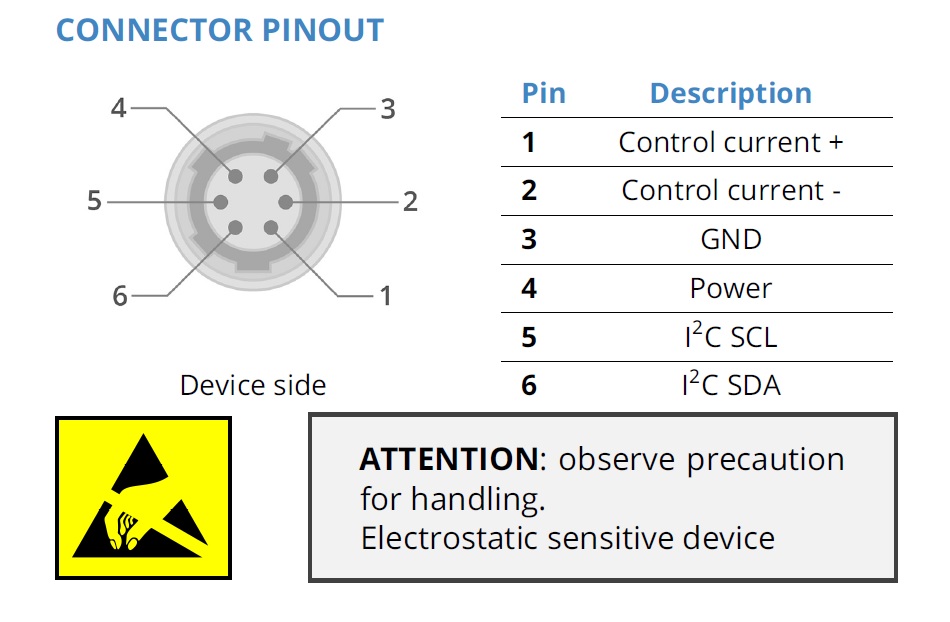

| Connector | Hirose HR10A-7R-6PB |
MECHANICAL
| Camera Mount | C-Mount |
| Phase Adjustment | Yes |
| Filter Thread | M30.5 x 0.5 |
| Front Diameter | 33.0 mm |
| Length | 40.9 mm |
| Mass | 87 g |
ENVIRONMENTAL
| Operating Temperature | 0 to +40C |
| Storage Temperature | 0 to 50C |
| Operating Relative Humidity | 20-85% Non-Condensing |
| Installation Environment | Indoor Use ONLY |
