SPECIFICATIONS

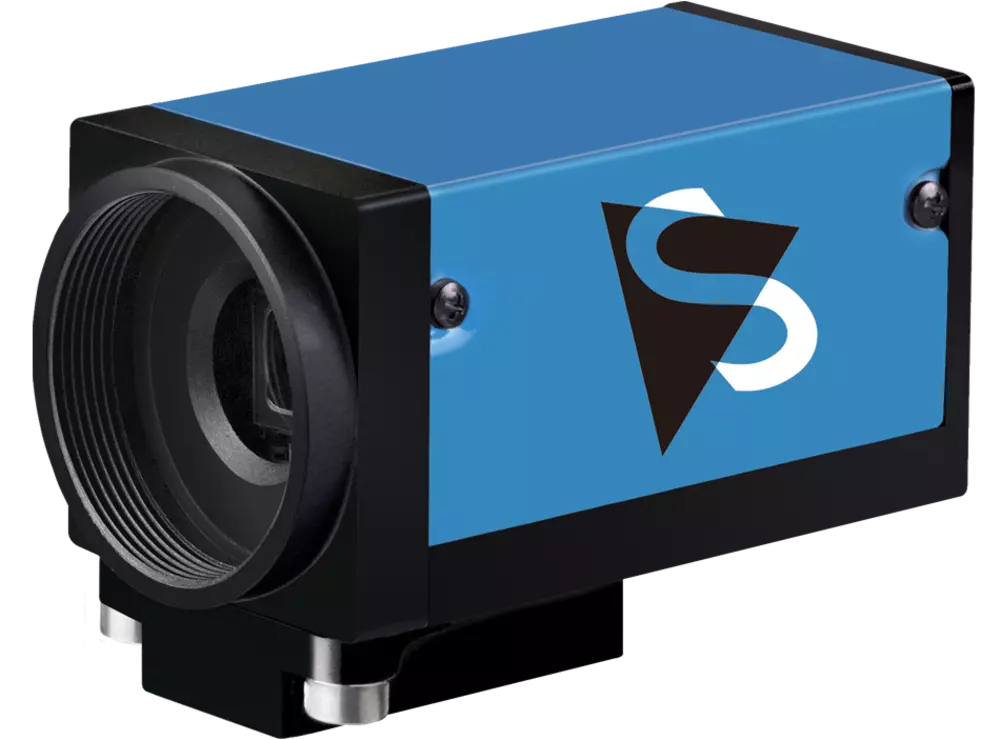

| MODEL | DMK 33GR0234 |
| COLOR or Monochrome | MONOCHROME |
| Interface | GigE Vision |
| Total Pixels | 2.3 MegaPixels |
| Horizontal Resolution | 1,920 Pixels |
| Vertical Resolution | 1,200 Pixels |
| Pixel Size | 3.00 um |
| Full Frame Rate | 50 frame/sec |
| Image Sensor | OnSemi AR0234CS |
| Electronic Shutter | GLOBAL |
| Pixel Formats | 8-Bit Monochrome 12-Bit Packed Monochrome 16-Bit Monochrome |
| Lens Format | 1/2.6 inch |
| Lens Mount | C / CS |
| General Purpose I/O (GPIO) | 1 Opto-isolated Trigger Input 1 Open-Drain MOSFET Strobe Output |
| I/O Connector | Hirose 4-pin (HR10A-7R-4P) |
ELECTRICAL
| Supply voltage | 11 to 13 VDC or POE: 48 VDC to 56 VDC |
| Current consumption | 400 ma @ 12 VDC |
| Power Consumption | 4.8 Watts |
ENVIRONMENTAL
| Operating Temperature | -5 °C to 45 °C |
| Storage Temperature | -20 °C to 60 °C |
| Operating Humidity | 20 % to 80 % (non-condensing) |
| Storage Humidity | 20 % to 95 % (non-condensing) |
