SPECIFICATIONS

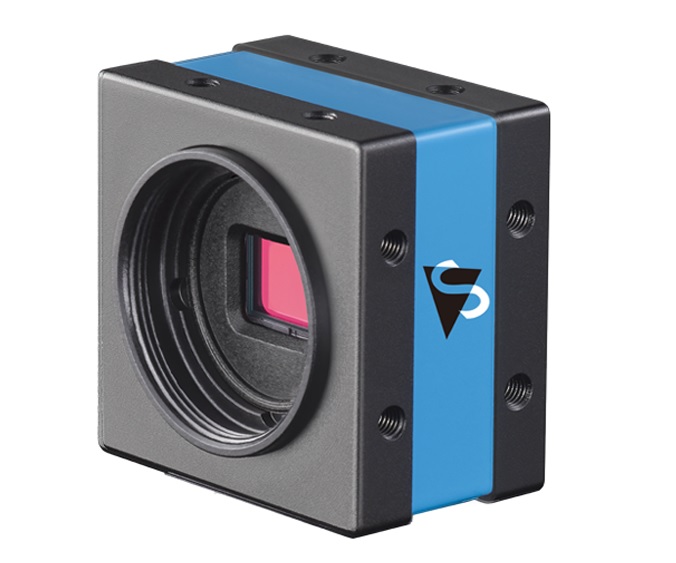

| MODEL | DMK 32BUVR024 |
| COLOR or Monochrome | MONOCHROME |
| Interface | USB 2.0 (forward compatible), Power via USB |
| Total Pixels | 0.36 MegaPixels |
| Horizontal Resolution | 744 Pixels |
| Vertical Resolution | 480 Pixels |
| Pixel Size | 6.0 um (2X bin of 3.0 um pixels) |
| Full Frame Rate | 89 frames/second |
| Image Sensor | OnSemi AR0234 |
| Electronic Shutter | GLOBAL |
| Pixel Formats | 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome |
| Lens Format | 1/3 inch |
| Lens Mount | C / CS |
| General Purpose I/O (GPIO) | YES |
| Trigger Input | YES |
| Supply voltage | 4.75 to 5.25 VDC via USB bus |
| Current consumption | 220 mA @ 5 VDC |
| Power Consumption | 1.1 Watts |
| Operating Temperature | -5 °C to 45 °C |
| Storage Temperature | -20 °C to 60 °C |
| Operating Humidity | 20 % to 80 % (non-condensing) |
| Storage Humidity | 20 % to 95 % (non-condensing) |
