The Basler daA1920-15um (No-Mount) USB 3.0 camera

with the ON Semiconductor MT9P031 CMOS sensor

delivers 15 frames per second at 2 MP resolution.

This model has no lens mount.

$ 139.00

SPECIFICATIONS

Model daA1920-15um (No-Mount)
Part Number 106732
Product Family Basler dart
Interface USB 3.0
Image Sensor OnSemi MT9P031
COLOR or Monochrome Mono
Optics Format 1/3.7 inch
Lens Mount None
Horizontal Pixels 1920
Vertical Pixels 1080
Total Pixels 2.07 MegaPixels
Frame Rate 15 Frames/sec
Electronic Shutter Rolling Shutter
Pixel Size 2.20 um
Pixel Depth 8, 12 bits
Pixel Output Formats
Mono 8, Mono 12
Frame Synchronization Hardware Trigger, Free-Run Mode, Software trigger
Exposure Control Programmable via the camera API
Hardware trigger
Digital Inputs 1
Digital Outputs 2
General Purpose I/O (GPIO) 2
Power Input via USB 3.0 interface
Power Consumption 1.2 Watts
Dimensions 7.2 mm x 27 mm x 27 mm
Operating Temperature 0 to 50 C
Mass 5 g



Standards Compliance (Documentation Available upon Request) CE, RoHS, GenICam, UL, USB3 Vision, FCC, KC

FEATURES



Standard Features
Auto Function Profile
Binning Horizontal
Binning Vertical
Black Level
Exposure Auto
Exposure Mode: Timed (Control via API)
Exposure Mode: Trigger Width (Control via External Trigger)
Gain
Gain Auto
Gamma Correction
Region of Interest (ROI)
Reverse X (Horizontal Mirroring)
Reverse Y (Vertical Mirroring)
Test Patterns

COMPLETE FEATURE LIST with GLOSSARY

(Link to Basler Web Site)



OPTICS

OPTICS PARAMETERS

Horizontal PhotoActive Area (PAA h) 4.224 mm
Vertical PhotoActive Area (PAA v) 2.376 mm
Diagonal PhotoActive Area (PAA diag) 4.846 mm
Image Sensor Resolution 227 line pairs/mm

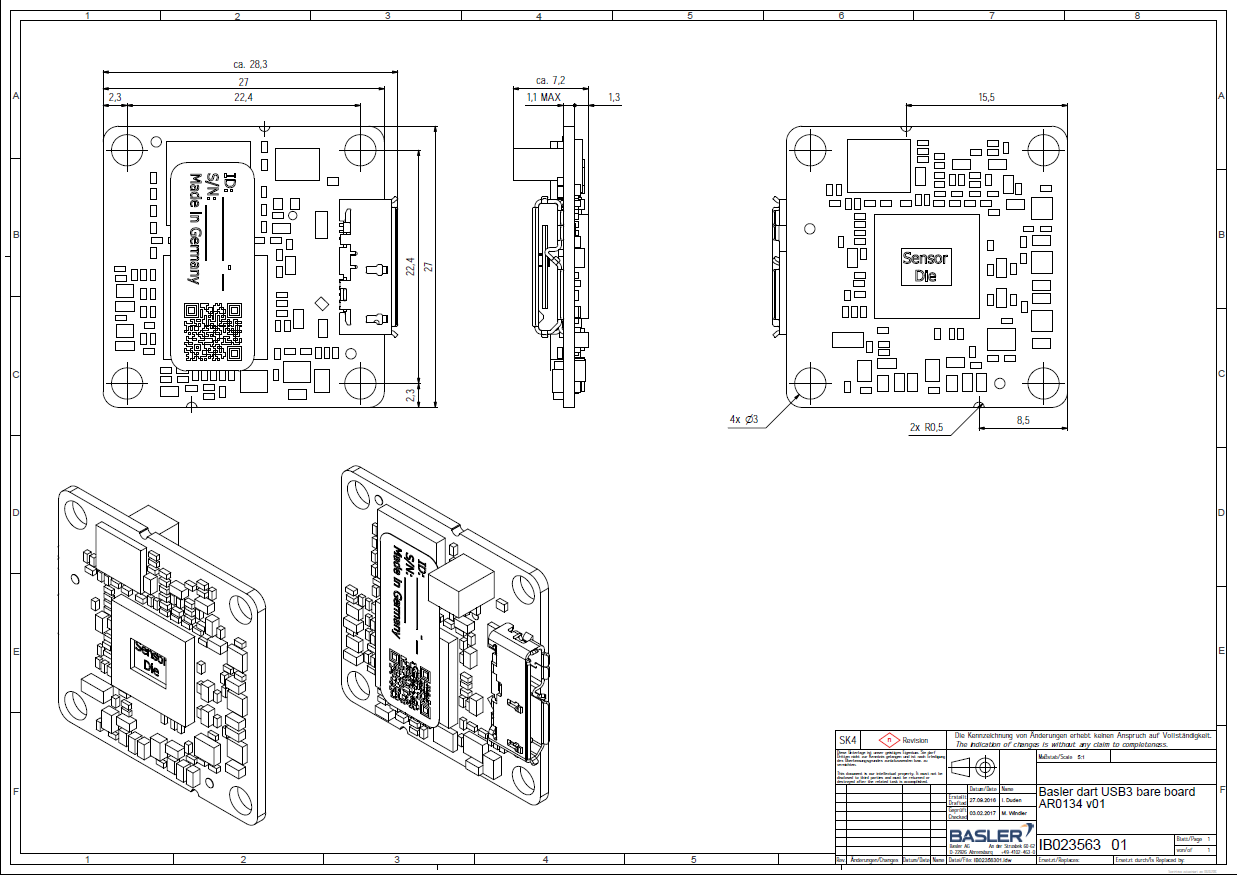

MECHANICAL & I/O Pinout

Case Type Board Level (no case)
Board Size (Thickness x W x H) 7.2 mm x 27 mm x 27 mm
Mass 5 g



Camera Connectors and LED Indicator Camera USB 3.0 Connector



I/O Connector Pin Numbering and Assignments

Pin Numbering for the I/O Connector
PIN # (Camera Side) Pin Name Pin Function
1 – 3.3 VDC, 20 mA Maximum

CAUTION: DO NOT APPLY EXTERNAL VOLTAGE SOURCE TO THIS PIN.
2 – Ground
3 Line 1 General Purpose I/O (GPIO) line

Preset: Input Line
4 Line 2 General Purpose I/O (GPIO) line

Preset: Input Line
5 – Not Connected
6 – Not Connected
