SPECIFICATIONS
| Model | daA1600-60lc (CS-Mount) |
| Part Number | 107114 |
| Product Family | Basler dart |
| Interface | BCON for LVDS |
| Image Sensor | Teledyne e2v EV76C570 |
| COLOR or Monochrome | Color |
| Optics Format | 1/1.8 inch |
| Lens Mount | CS Mount |
| Horizontal Pixels | 1600 |
| Vertical Pixels | 1200 |
| Total Pixels | 1.92 MegaPixels |
| Frame Rate | 60 Frames/sec |
| Electronic Shutter | Global Shutter |
| Pixel Size | 4.50 um |
| Pixel Depth | 8, 12 bits |
| Pixel Output Formats |
Bayer 12 Bayer 8 RGB 8 YCbCr422_8 (YUV422_8) |
| Frame Synchronization | Hardware Trigger
Free-Run Mode Software trigger |
| Exposure Control | programmable via the camera API |
| Digital Inputs | 1 |
| Digital Outputs | 2 |
| General Purpose I/O | – |
| Power Input | +5V DC (via BCON for LVDS interface) |
| Power Consumption | 1.3 Watts |

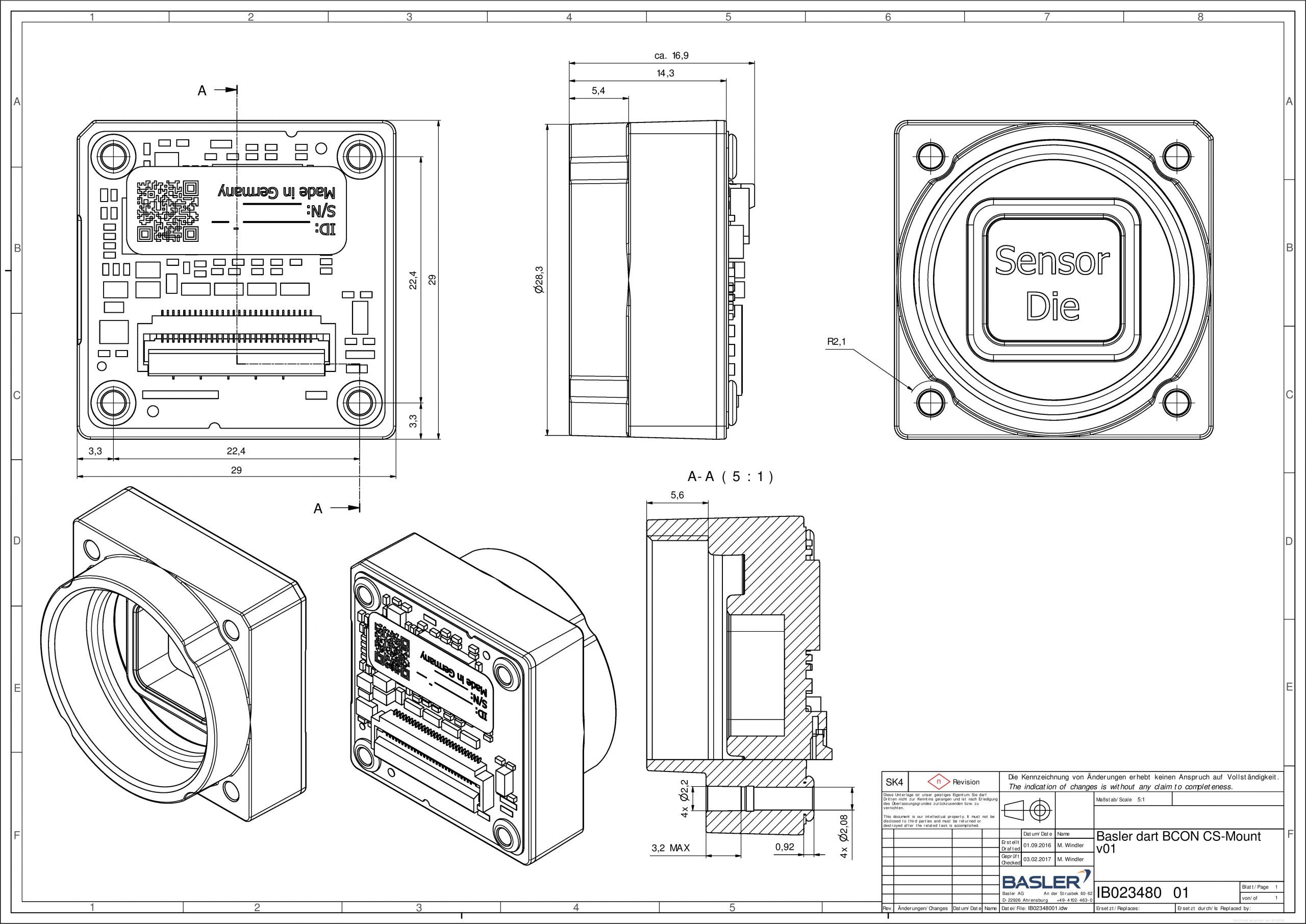

| Dimensions | 17.4 mm x 29 mm x 29 mm |
| Operating Temperature | 0 to 50 C |
| Mass | 15 g |
| Standards Compliance
(Documentation Available upon Request) |
CE, RoHS, FCC, GenICam, UL |
