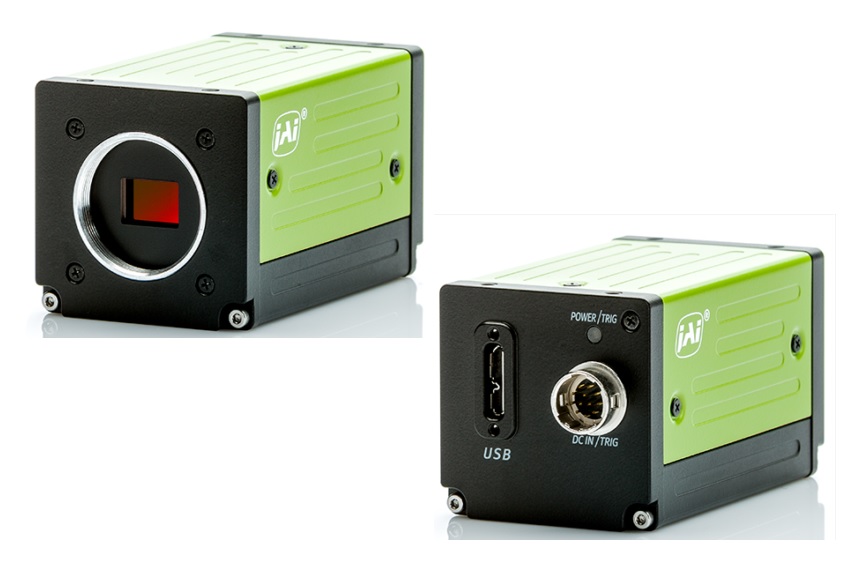

AP-3200T-USB

SPECIFICATIONS

Model	AP-3200T-USB
Product Family	Apex Series
Interface	USB 3.0 Vision
Image Sensors	3 x Sony Pregius IMX265 CMOS (Vis/NIR/NIR)
Horizontal Pixels	2,064
Vertical Pixels	1,544
Total Pixels	3 x 3.2 MegaPixels
Frame Rate	38 f/s
Light Spectrum	3-Bands: Visible
Spectral Range	Visible + IR when IR Cut Filter Removed
Optics Format	1/1.8 inch
Image Sensor PhotoActive Diagonal	8.893 mm
Pixel Size	3.45 μm
Lens Mount	C-mount
Electronic Shutter	Global
Pixel Formats	8/10/12 bit
Frame Synchronization	Free-run Hardware trigger Software trigger
Trigger Input	Opto In (2), Pulse Generators (4), Software, TTL In (2), NAND Out (2), User Output (4)
Digital I/O	2 Opto-Isolated Input lines, 1 Opto-Isolated Output line

ELECTRICAL

Voltage Input (Hirose 12-pin connector) [USB Bus Power not supported]	Input Range: +12V to +24V DC
Power Consumption	5.3 W typical @ +12 V

MECHANICAL

Case Type	Metal Shielded Box
Case Size (L x W x H)	44.0 mm x 44.0 mm x 74 mm
Mass	170 g
Vibration Tolerance	3G (20 Hz to 200 Hz XYZ)
Shock Tolerance	50g

STANDARDS COMPLIANCE

REGULATIONS

CE (EN61000-6-2, EN61000-6-3), FCC Part 15 Class B, RoHS/WEEE

ENVIRONMENTAL

Operating Temperature	-5°C to +45°C
Storage Temperature	-25°C to +60°C
Humidity	20% – 80% non-condensing

OVERVIEW

The Apex AP-3200T-USB is a 3-CMOS prism-based industrial R-G-B area scan camera providing better color fidelity and spatial precision than traditional Bayer color cameras. The camera is built around the Pregius IMX265 1/1.8 inch sensor featuring 2064 x 1544 pixels and pixel sizes of 3.45 µm x 3.45 µm. The USB3 Vision interface offers excellent plug and play compatibility while delivering 3 x 3.2 megapixels at 38.3 frames/second.
The camera can be optionally ordered with the IR-cut filter removed (AP-3200T-USB-NF) for applications needing extended sensitivity in the red/NIR channel for applications that may need a combination of visible and NIR information. It is loaded with a range of advanced features and functions supporting the most challenging color imaging applications.

Exceptionally Accurate Color Image Data

Using a special prism-based imaging technique, the incoming light is separated into red, green and blue wavelengths, captured by three precisely-aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.

High Resolution Combined with High Frame Rate

The AP-3200T-USB is built around three Sony Pregius IMX265 sensors. Combined with a USB3 Vision interface, this machine vision camera can output as much as 3 x 3.2 megapixels at nearly 38 frames/second in full resolution.

Flexible Color Space Conversion

The AP-3200T-USB provides great flexibility in on-board color space conversion: including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion. (sRGB and Adobe RGB color spaces are also supported).

FEATURES

3-CMOS prism-based RGB camera.
3 x IMX265 Sony Pregius sensors.
True raw image data (Red, Green and Blue). Also available with IR-cut filter removed (AP-3200T-USB-NF) for extended sensitivity in the red/NIR channel.
USB3 Vision interface
Analog gain and exposure setting for each individual R-G-B channel.
Flexible color space conversion.
Single and Multi-Region-of-Interest (ROI).
Automatic level control.
Shading correction on ROI.
Color temperature presets.
Built-in color enhancer and edge enhancer functions.
Pixel binning (2×1, 1×2 and 2×2).
Chunk data for each image.
Compatible with Image-Pro and Micro-Manager software packages for integration with digital microscopy applications.
Robust and compact design (Shock 50G/Vibration 3G).

SPECTRAL RESPONSE

OPTICS

OPTICS PARAMETERS

	Horizontal PhotoActive Area (PAA h)	7.121 mm
	Vertical PhotoActive Area (PAA v)	5.327 mm
	Diagonal PhotoActive Area (PAA diag)	8.893 mm
	Image Sensor Resolution	145 line pairs/mm
	Effective C-Mount Flange Distance	17.526 mm CAUTION: Maximum Lens Rear Mechanical Protrusion: 4 mm

I/O Pinout

JAI GO USB I/O CONNECTOR
Hirose HR-10A-10R-12PB (71)

USB3 Vision Interface Connector

Micro-B Type – ZX3600-B-10P or equivalent

PIN	FUNCTION
1	Ground
2	DC input +12VDC to +24VDC
3	Opto IN 2 (-)
4	Opto IN 2 (+)
5	Opto IN 1 (-)
6	Opto IN 1 (+)
7	Opto OUT 1 (-)
8	Opto OUT 1 (+)
9	TTL Out 1
10	n/c
11	C input +12VDC to +24VDC
12	Ground

PIN	I/O	Name	Note
1	I	VBUS IN	Power (VBUS)
2	I/O	DM	USB2.0 Differential pair (-)
3	I/O	DP	USB2.0 Differential pair (+)
4		OTG ID	USB OTG ID for identifying lines
5		GND	GND
6	O	FX3 SSTXM	USB3.0 Signal Transmission line (-)
7	O	FX3 SSTXP	USB3.0 Signal Transmission line (+)
8	GND	GND	GND
9	I	FX3 SSRXP	USB3.0 Signal Receiving line (-)
10	I	FX3 SSRXM	USB3.0 Signal Receiving line (+)

DOWNLOADS

AP-3200T-USB DATASHEET
Flyer-Apex-Series-AP-3200T-AP-1600T
Flyer – Apex Microscopy
AP-1600T-USB MANUAL
CAD file – AP-3200T-USB / AP-1600-USB
AP-3200T-USB FRAME RATE CALCULATOR
