AP-3200T-PGE

SPECIFICATIONS

Model	AP-3200T-PGE
Product Family	Apex Series
Interface	Gigabit Ethernet (GigE)
Image Sensors	3 x Sony Pregius IMX265 CMOS (Vis/NIR/NIR)
Horizontal Pixels	2,064
Vertical Pixels	1,544
Total Pixels	3 x 3.2 MegaPixels
Frame Rate	12 f/s
Light Spectrum	3-Bands: Visible
Spectral Range	Visible
Optics Format	1/1.8 inch
Image Sensor PhotoActive Diagonal	8.893 mm
Pixel Size	3.45 μm
Lens Mount	C-mount
Electronic Shutter	Global
Pixel Formats	8/10/12 bit
Frame Synchronization	Free-run Hardware trigger Software trigger
Trigger Input	Opto In (2), Pulse Generators (4), Software, TTL In (2), NAND Out (2), User Output (4)
Digital I/O	2 Opto-Isolated Input lines, 1 Opto-Isolated Output line

ELECTRICAL

Voltage Input (Hirose 12-pin connector)

Power Over Ethernet (POE)

Input Range: +12V to +24V DC

+36V to +57 V DC.

Power Consumption

External Power: 5.4 W typical @ +12 V

Power Over Ethernet: 7.5 W Typical @ 48V

MECHANICAL

Case Type	Metal Shielded Box
Case Size (L x W x H)	62.0 mm x 62.0 mm x 86.5 mm
Mass	270 g
Vibration Tolerance	3G (20 Hz to 200 Hz XYZ)
Shock Tolerance	50g

STANDARDS COMPLIANCE

REGULATIONS

CE (EN61000-6-2, EN61000-6-3), FCC Part 15 Class B, RoHS/WEEE

ENVIRONMENTAL

Operating Temperature	-5°C to +45°C
Storage Temperature	-25°C to +60°C
Humidity	20% – 80% non-condensing

OVERVIEW

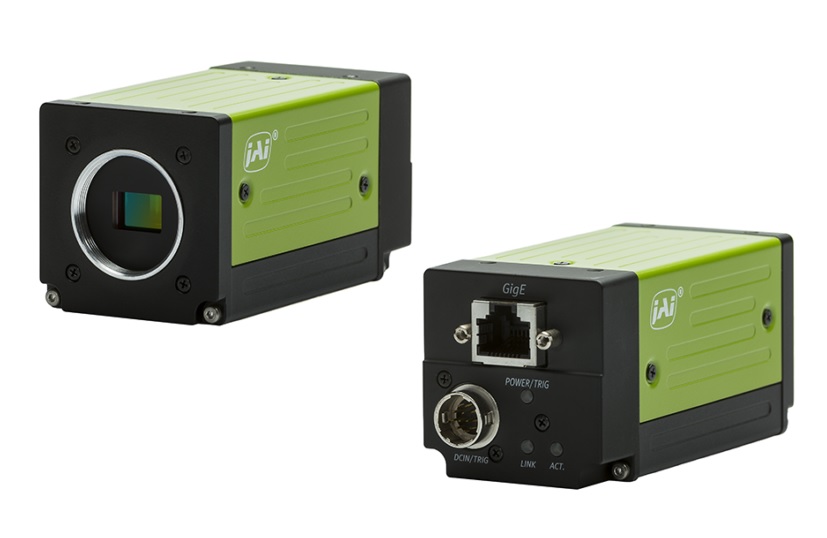

The Apex AP-3200T-PGE is a 3-CMOS prism-based industrial R-G-B area scan camera delivering 3 x 3.2 megapixels at 12 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications.

Exceptionally Accurate Color Image Data

Using a special prism-based imaging technique, the incoming light is separated into red, green and blue wavelengths, captured by three precisely-aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.

High Resolution Combined with High Frame Rate

The AP-3200T-PGE is built around three Sony Pregius IMX265 sensors. Combined with a 10 GigE Vision interface, this machine vision camera can output as much as 3 x 3.2 megapixels at 12 frames/second in full resolution.

Flexible Color Space Conversion

The AP-3200T-PGE provides great flexibility in on-board color space conversion: including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion. (sRGB and Adobe RGB color spaces are also supported).

FEATURES

3-CMOS prism-based RGB camera.
3 x IMX265 Sony Pregius sensors.
True raw image data (Red, Green and Blue).
GigE Vision interface.
Analog gain and exposure setting for each individual R-G-B channel.
Flexible color space conversion.
Single and Multi-Region-of-Interest (ROI).
Automatic level control.
Shading correction on ROI.
Color temperature presets.
Color enhancer tool.
Pixel binning (2×1, 1×2 and 2×2).
Chunk data for each image.
Robust and compact design (Shock 50G/Vibration 3G)

SPECTRAL RESPONSE

OPTICS

OPTICS PARAMETERS

	Horizontal PhotoActive Area (PAA h)	7.121 mm
	Vertical PhotoActive Area (PAA v)	5.327 mm
	Diagonal PhotoActive Area (PAA diag)	8.893 mm
	Image Sensor Resolution	145 line pairs/mm
	Effective C-Mount Flange Distance	17.526 mm CAUTION: Maximum Lens Rear Mechanical Protrusion: 4 mm

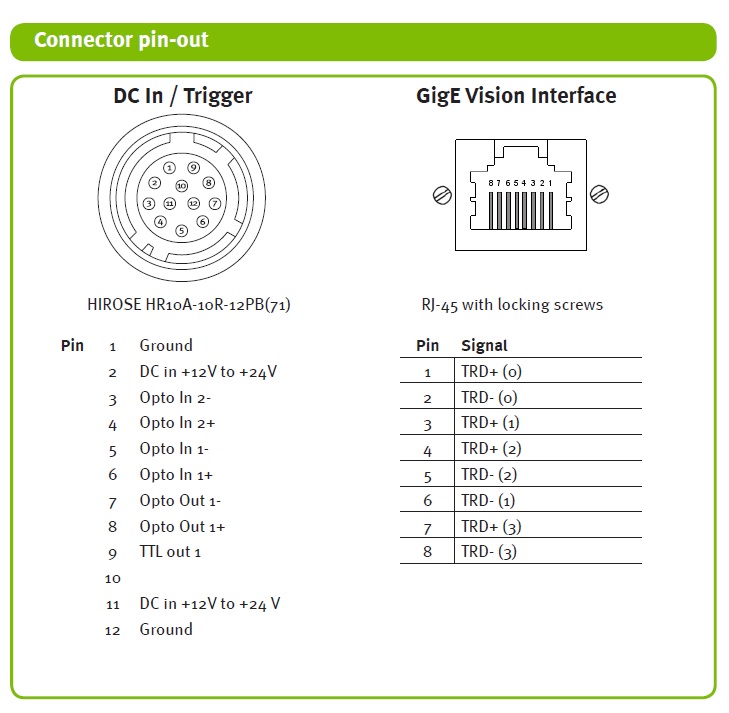

I/O Pinout

DOWNLOADS

AP-3200T-10GE DATASHEET
AP-3200T-10GE MANUAL
CAD file – AP-3200T-10GE
AP-3200T-10GE FRAME RATE CALCULATOR

High Resolution Prism-Based 3 x CMOS Camera

3 x Sony IMX265 Pregius Image Sensors

Visible & Spectral Channels Optically Coupled via Prism

GigE Interface with Power Over Ethernet (PoE)
