SPECIFICATIONS

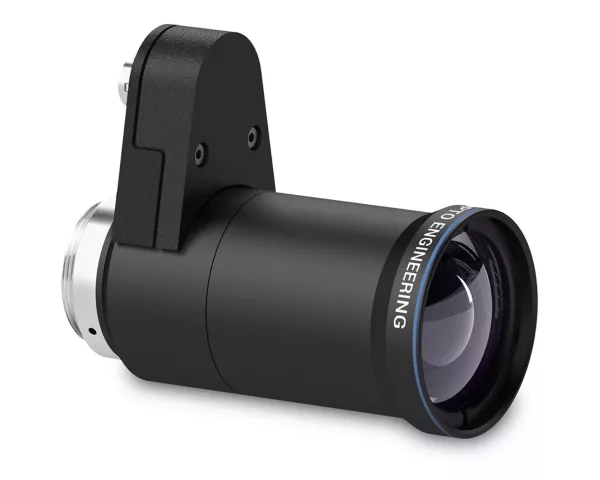

| MODEL | EL12MP3540 |
| Focal Length | 35.0 mm |
| Magnification (at MOD) | 0.150X |
| Image Circle | 17.6 mm |
| Maximum Optics Format | 1.1 inch |
| Working Distance | 200 mm to Infinity |
| f/N | 4.0 |
| Back Focal Length | 13.5 mm |
| Distortion | < 0.10 % |
Angle of View
| 2/3-inch Sensor | 17.9° |
| 1-inch Sensor | 25.5° |
| 1.1-inch Sensor | 28.2° |
Field of View (at Minimum Object Distance)
| 2/3-inch Sensor | 56.7 x 47.3 mm |
| 1-inch Sensor | 94.6 x 50.1 mm |
| 1.1-inch Sensor | 94.4 x 69.1 mm |
LIQUID LENS SPECIFICATION
| Liquid lens model | Optotune EL-12-30 |
| Temperature sensor | Yes |
| Focal power mode | Yes |
| Response time | 3.0 ms |
| Setting time | 20.0 ms |
| Current range | -300 to +300 mA |
| Lifecycles (10%-90% sinusoidal) | > 1,000,000,000 |
| Connector | Hirose HR10A-7R-6PB |
MECHANICAL
| Camera Mount | C-Mount |
| Phase Adjustment | Yes |
| Filter Thread | M40.5 x 0.5 |
| Outer Diameter | 42.0 mm |
| Length | 94.6 mm |
| Mass | 160.0 g |
ENVIRONMENTAL
| Operating Temperature | 0 to +40°C |
| Storage Temperature | 0 to 50°C |
| Operating Relative Humidity | 20-85% Non-Condensing |
| Installation Environment | Indoor Use ONLY |
