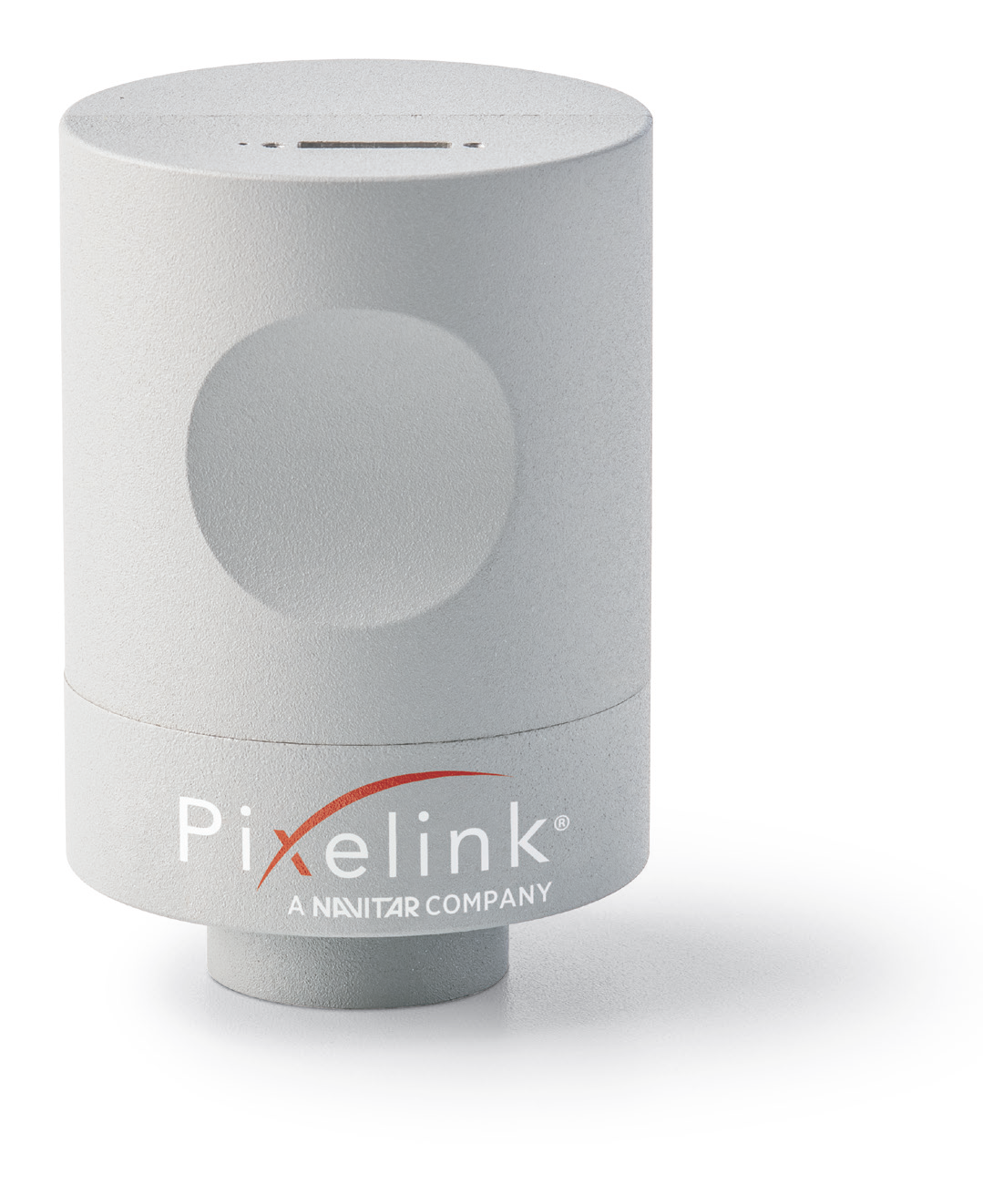

Pixelink’s high quantum efficiency cameras offer high sensitivity with peak 84 QE and excellent image quality, color fidelity, and low light performance.
These CMOS camera models, based on Sony’s IMX183 Exmor R backside-illuminated image sensor technology, rival the performance of many sCMOS cameras, and easily integrate into automated microscopy, medical imaging and stand alone microscopy systems.
Features
| Applications
|
M20M-SE-CYL | 20 MegaPixel Monochrome Camera Plus µScope Standard Software 2-meter USB 3.0 Locking Cable | |||
M20M-PRO-CYL | 20 MegaPixel Monochrome Camera
Plus µScope Professional Software
2-meter USB 3.0 Locking Cable | |||
M20M-KIT-CYL | 20 MegaPixel Monochrome Camera
Plus µScope Essentials Software
2-meter USB 3.0 Locking Cable | |||
M20M-CYL | 20 MegaPixel Monochrome Camera
2-meter USB 3.0 Locking Cable | |||
M20C-SE-CYL | 20 MegaPixel Color Camera
Plus µScope Standard Software
2-meter USB 3.0 Locking Cable | |||
M20C-PRO-CYL | 20 MegaPixel Color Camera
Plus µScope Essentials Software
2-meter USB 3.0 Locking Cable | |||
M20M-KIT-CYL | 20 MegaPixel Color Camera
Plus µScope Essentials Software
2-meter USB 3.0 Locking Cable | |||
M20C-CYL | 20 MegaPixel Color Camera
2-meter USB 3.0 Locking Cable | |||
PL-D7620MU-BL | 20 MegaPixel Monochrome Camera
Board-Level Version with GPIO | |||
PL-D7620MU-T | 20 MegaPixel Monochrome Camera
Enclosed Version with Trigger Input | |||
PL-D7620MU | 20 MegaPixel Monochrome Camera
without Trigger Input or GPIO | |||
PL-D7620CU-T | 20 MegaPixel Color Camera
Enclosed Version with Trigger Input | |||
PL-D7620CU-BL | 20 MegaPixel Color Camera
Board-Level Version with GPIO | |||
PL-D7620CU | 20 MegaPixel Color Camera
without Trigger Input or GPIO |
MODEL | MONO COLOR NIR POLARSENS | HORIZ PIXELS | VERT PIXELS | TOTAL PIXELS (MPixels) | FRAME RATE (f/sec) | PIXEL SIZE (um) | OPTICS FORMAT | IMAGE SENSOR DIAG (mm) | IMAGE SENSOR MANUF. | IMAGE SENSOR MODEL | LENS MOUNT | ELECTRONIC SHUTTER | INTERFACE |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M20C-CYL | COLOR | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20M-CYL | MONO | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20C-KIT-CYL | COLOR | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20M-KIT-CYL | MONO | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20C-PRO-CYL | COLOR | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20M-PRO-CYL | MONO | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20C-SE-CYL | COLOR | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
M20C-SE-CYL | MONO | 5472 | 3640 | 19.92 | 20 | 2.40 | 1 in | 15.86 | SONY | IMX183 | C-Mount | ROLLING | USB 3.0 |
