TCLWD and TCVLWD Series
BiTelecentric Lenses for Long Working Distances
The TCLWD (Long Working Distance) and the TCVLWD ( Very Long Working Distance lenses provide telecentric optics performance for relatively long working distances of 132.3 mm and 156.0 mm respectively.
Â
The TCLWD Series supports cameras of up to 2/3-inch optical format, with a working distance of 132.3 millimeters.
Â

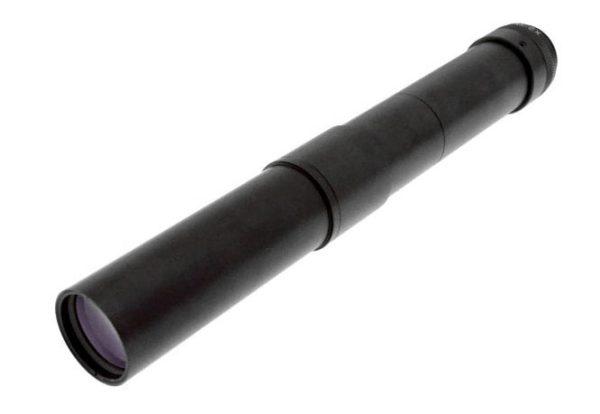

The TCVLWD Series supports cameras of up to 1/1.8-inch format, with working distances of 156 to 800 millimeters.
Â
The TCVLWD3M Series supports cameras of up to 1.1-inch format, with working distances of 110, 178 or 274 to millimeters.
SERIES
SERIES
SERIES
SERIES
TC LWD (Long Working Distance) Series Working Distance: 132.4 mm |  |
| MODEL | MAG (i/o) | IMAGE CIRCLE (mm) | FIELD of VIEW 1/3-in Camera (mm x mm) | FIELD of VIEW 1/2.5-in Camera (mm x mm) | FIELD of VIEW 1/2-in Camera (mm x mm) | FIELD of VIEW 1/1.8-in Camera (mm x mm) | FIELD of VIEW 2/3-in Camera (mm x mm) | WORKING DISTANCE (mm) | DEPTH of FIELD (mm) | Lens LENGTH (mm) | Lens DIAMETER (mm) | Lens MASS (grams) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCLWD050 | 0.500 | 11.0 | 9.60 x 7.20 | 11.4 x 8.56 | 12.8 x 9.60 | 14.3 x 10.7 | 16.9 x 14.1 | 132.3 | 4.0 | 130.7 | 37.7 | 317 |
| TCLWD066 | 0.660 | 11.0 | 7.27 x 5.45 | 8.64 x 6.48 | 9.70 x 7.27 | 10.8 x 8.14 | 12.8 x 10.7 | 132.3 | 2.3 | 149.3 | 37.7 | 349 |
| TCLWD075 | 0.750 | 11.0 | 6.40 x 4.80 | 7.60 x 5.71 | 8.53 x 6.40 | 9.51 x 7.16 | 11.3 x 9.43 | 132.3 | 1.8 | 155.0 | 37.7 | 386 |
| TCLWD100 | 1.000 | 11.0 | 4.80 x 3.60 | 5.70 x 4.28 | 6.40 x 4.80 | 7.13 x 5.37 | 8.45 x 7.07 | 132.3 | 1.0 | 126.0 | 37.7 | 339 |
| TCLWD150 | 1.500 | 11.0 | 3.20 x 2.40 | 3.80 x 2.85 | 4.27 x 3.20 | 4.75 x 3.58 | 5.63 x 4.71 | 132.3 | 0.6 | 140.4 | 37.7 | 376 |
| TCLWD250 | 2.500 | 11.0 | 1.92 x 1.44 | 2.28 x 1.71 | 2.56 x 1.92 | 2.85 x 2.15 | 3.38 x 2.83 | 132.3 | 0.3 | 157.0 | 37.7 | 413 |
| TCLWD350 | 3.500 | 11.0 | 1.37 x 1.03 | 1.63 x 1.22 | 1.83 x 1.37 | 2.04 x 1.53 | 2.41 x 2.02 | 132.3 | 0.2 | 174.7 | 37.7 | 450 |
SERIES
TC VLWD (Very Long Working Distance) Series Working Distances from 156 mm to 800. mm |  |
SERIES
TC LWD3M Series – Long Working Distancefor up to 1.1-in CamerasWorking Distances: 109 mm to 276 mm |  |
| MODEL | MAG (i/o) | IMAGE CIRCLE (mm) | OPTIC FORMAT | FIELD of VIEW 1/1.8-in Camera (mm x mm) | FIELD of VIEW 2/3-in Camera (mm x mm) | FIELD of VIEW 1.1-in Camera (mm x mm) | WORKING DISTANCE (mm) | W f/# | DEPTH of FIELD (mm) | Lens LENGTH (mm) | Lens DIAMETER (mm) | Lens MASS (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCLWD100-110-3M | 1.000 | 17.6 | 1.1″ | 7.13 x 5.33 | 8.50 x 7.09 | 14.16 x 10.37 | 110 | 12 | 0.6 | 190.0 | 42.0 | 365 |
| TCLWD080-110-3M | 0.800 | 17.6 | 1.1″ | 8.91 x 6.66 | 10.63 x 8.86 | 17.70 x 12.96 | 110 | 12 | 1.0 | 175.0 | 42.0 | 354 |
| TCLWD055-110-3M | 0.550 | 17.6 | 1.1″ | 12.96 x 9.69 | 15.45 x 12.89 | 25.75 x 18.85 | 110 | 10 | 1.7 | 176.0 | 52.0 | 365 |
| TCLWD050-110-3M | 0.500 | 17.6 | 1.1″ | 14.26 x 10.66 | 17.00 x 14.18 | 28.32 x 20.74 | 110 | 10 | 2.1 | 170.0 | 52.0 | 360 |
| TCLWD050-180-3M | 0.500 | 17.6 | 1.1″ | 14.26 x 10.66 | 17.00 x 14.18 | 28.32 x 20.74 | 178 | 10 | 2.1 | 193.0 | 52.0 | 415 |
| TCLWD040-110-3M | 0.400 | 17.6 | 1.1″ | 17.83 x 13.33 | 21.25 x 17.73 | 35.40 x 25.93 | 110 | 10 | 3.2 | 185.0 | 62.0 | 469 |
| TCLWD030-110-23 | 0.300 | 11.0 | 2/3″ | 23.77 x 17.77 | 28.33 x 23.63 | ø = 34.57 | 110 | 10 | 5.8 | 170.0 | 62.0 | 441 |
| TCLWD030-180-3M | 0.300 | 17.6 | 1.1″ | 23.77 x 17.77 | 28.33 x 23.63 | 47.20 x 34.57 | 178 | 8 | 4.6 | 205.0 | 82.0 | 642 |
| TCLWD020-180-23 | 0.200 | 11.0 | 2/3″ | 35.65 x 26.65 | 42.50 x 35.45 | ø = 51.85 | 178 | 8 | 10.4 | 184.0 | 82.0 | 615 |
| TCLWD020-275-23 | 0.200 | 11.0 | 2/3″ | 35.65 x 26.65 | 42.50 x 35.45 | ø = 51.85 | 274 | 8 | 10.4 | 201.0 | 82.0 | 651 |
