new! UB-LL Series
Brightest Line Light on the Market

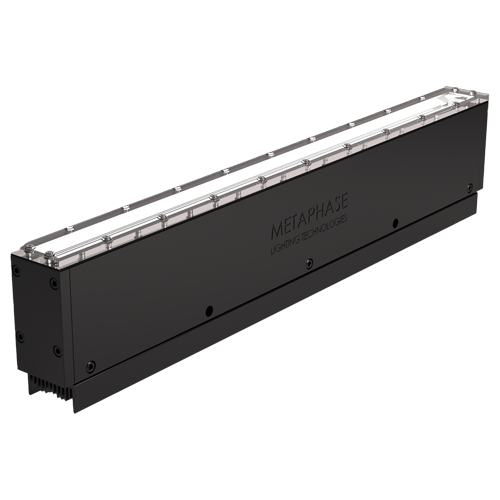

The UB-LL Line Light is the latest design in the Metaphase family of LED lights for line scan. Its narrow, structured beam delivers high intensity and concentrated light for the narrow field of view of a traditional line scan camera.
The high intensity and uniformity allows the UL Line Light to be used as front light to inspect for material defects, angled to obtain an off-axis effect to highlight surface defects, or it may be placed beneath the object for a backlight effect to inspect for holes, voids, or contaminants. It is the brightest passively cooled line light in the world!
• 2.5 Million LUX !! • NO SEAM lensing (focused or collimated) • Drop-in Replacement for UL-LL Series • Multiple cover, diffuser, back-lighting options • Passive cooling (no fans needed) | • Compliance: CE and RoHS. • Compatible with DDC-3, ULC-2 and ILD-35 Controllers • 0-10V dimming • Ambient Temp: -20°C to 40°C • Lifetime Expectancy: 75,000 hours |
AVAILABLE
WAVELENGTHS
| Power Source | 24VDC +/-5% |
| Cable (Typical) | 10 ft / (3.05 m) cable with flying leads |
| Housing | Black Anodized Aluminum |
| Cooling | Passive Cooling (No Fans Required) |
| Ambient Temperature | -20 °C to 40 °C |
| Lifetime Expectancy | 75,000 hours (except UV) |
Features
• 2.5 Million LUX !! • NO SEAM lensing (focused or collimated) • Drop-in Replacement for UL-LL Series • Multiple cover, diffuser, back-lighting options • Passive cooling (no fans needed) | • Compliance: CE and RoHS. • Compatible with DDC-3, ULC-2 and ILD-35 Controllers • 0-10V dimming • Ambient Temp: -20°C to 40°C • Lifetime Expectancy: 75,000 hours |

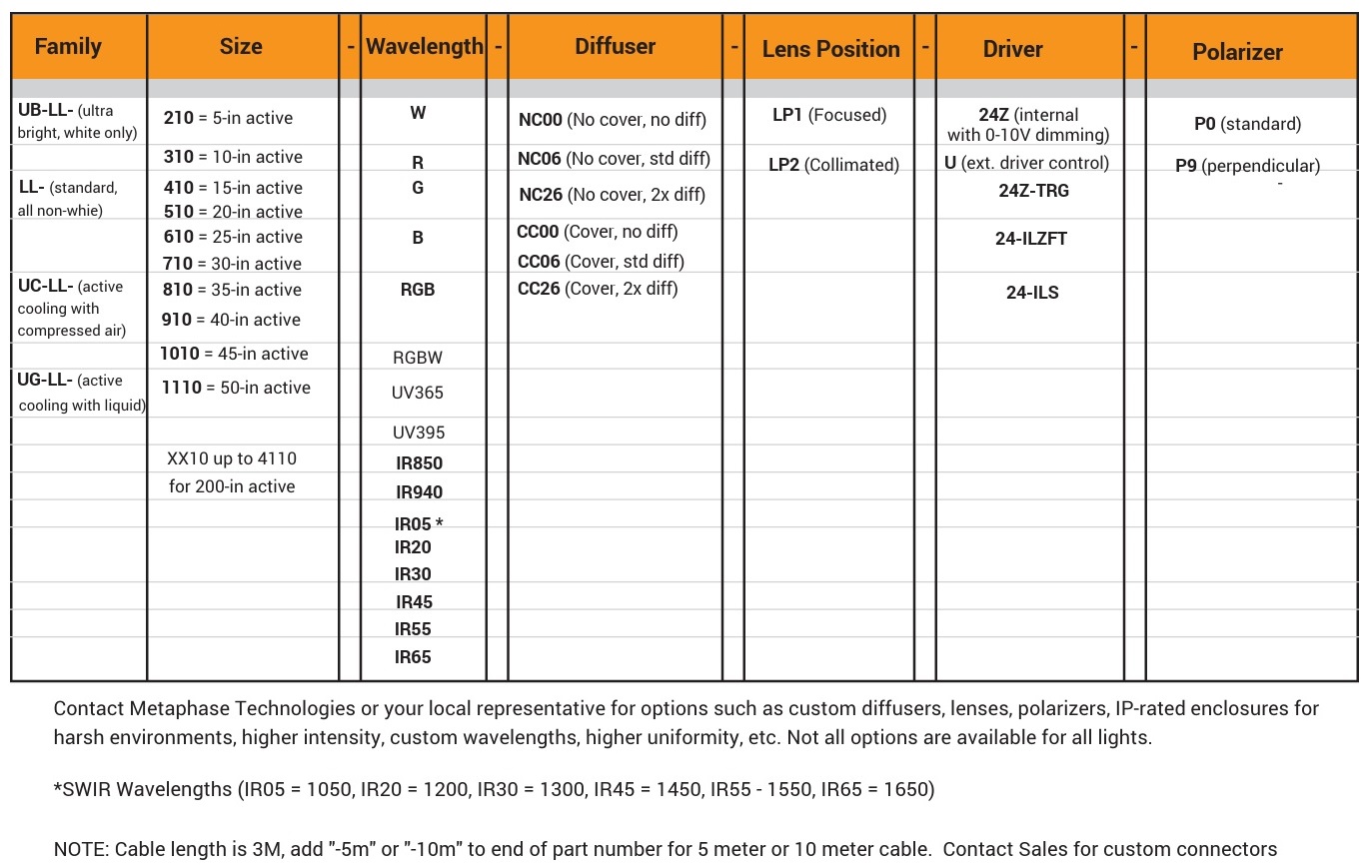

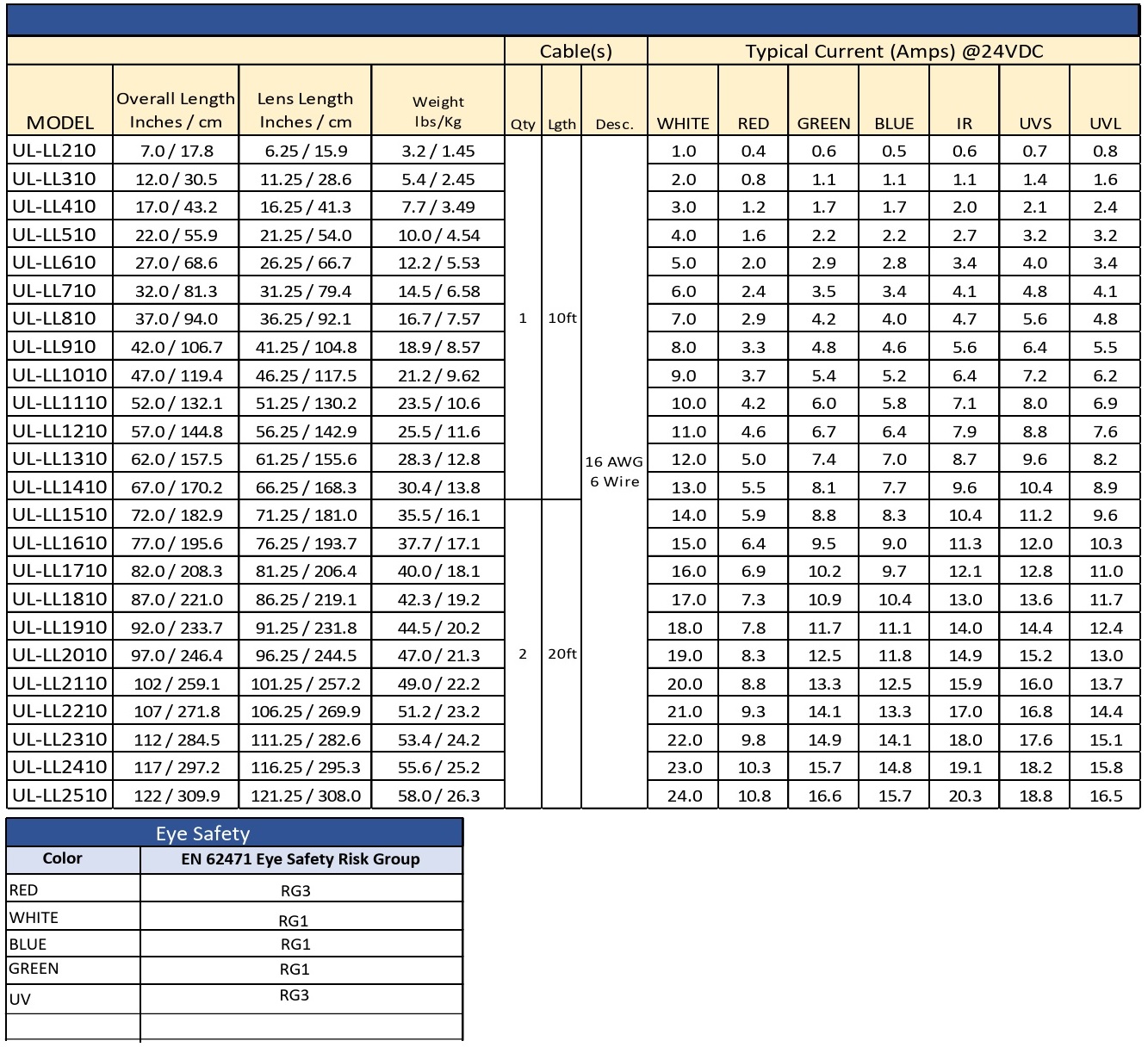

UB-LL Series
SINGLE COLOR VERSION
RGB VERSION
| DRIVER OPTIONS |
Metaphase offers many Driver options to customize our lights to any specific application. Most Drivers are available in both Built-In (BI) and In-Line (IL) configurations and include features for Intensity Control, Triggering, Strobing, compatibility with LED Controllers such as the ULC-2 and other third-party controllers; Keyence and Trinity. Other Drivers offered are unique for compatibility with Cognex and Baumer cameras. These options provide greater flexibility, control, and convenience when integrating Metaphase illumination systems. All drivers will not be compatible with every light of every size. |
| DESCRIPTION | |
| 24CV | 24V, Constant Voltage |
| 24Z | 24V, Constant Current with 0-10V Intensity Control |
| 24NZ | 24V, Constant Current with No 0-10V Intensity Control |
| 24-BIS100 | 24V, Built-In Strobe, 100µs |
| 24-BIS250 | 24V, Built-In Strobe, 250µs |
| 24-BIS300 | 24V, Built-In Strobe, 300µs |
| 24Z-TRG | 24V, Built-In Trigger with 0-10V Intensity Control |
| 24Z-FTRG | 24V, Built-In Fast Trigger with 0-10V Intensity Control |
| 24-ILD | 24V, In-Line Dimmer |
| 24-ILD2,3,4,5 | 24V, In-Line Dimmer 2, 3, 4 or 5 Channel |
| 24-ILDT | 24V, In-Line Dimmer with Trigger |
| 24-ILDT2,3,4,5 | 24V, In-Line Dimmer with Trigger 2, 3, 4 or 5 Channel |
| 24-ILDFT | 24V, In-Line Dimmer with Fast Trigger |
| 24-ILZ | 24V, In-Line 0-10V Intensity Control |
| 24-ILZ2,3,4,5 | 24V, In-Line 0-10V Intensity Control, 2, 3, 4 or 5 Channel |
| 24-ILNZ | 24V, In-Line Constant Current with No 0-10V Intensity Control |
| 24-ILT | 24V, In-Line Trigger |
| 24-ILT2,3,4,5 | 24V, In-Line Trigger, 2, 3, 4 or 5 Channel |
| 24-ILFT | 24V, In-Line Fast Trigger |
| 24-ILFT2,3,4,5 | 24V, In-Line Fast Trigger, 2, 3, 4 or 5 Channel |
| 24-ILZT | 24V, In-Line 0-10V Intensity Control with Trigger |
| 24-ILZT2,3,4,5 | 24V, In-Line 0-10V Intensity Control with Trigger 2, 3, 4 or 5 Channel |
| 24-ILS50 | 24V, In-Line Strobe, 50µs |
| 24-ILS100 | 24V, In-Line Strobe, 100µs |
| 24-ILS250 | 24V, In-Line Strobe, 250µs |
| 24-ILS300 | 24V, In-Line Strobe, 300µs |
| 24-ILS500 | 24V, In-Line Strobe, 500µs |
| 24-ILS700 | 24V, In-Line Strobe, 700µs |
| 24-ILS1000 | 24V, In-Line Strobe, 1000µs |
| 24-ILS1500 | 24V, In-Line Strobe, 1500µs |
| U | Universal LED Controller (ULC) Compatible |
| U2 | Universal LED Controller (ULC) Compatible, Dual |
| TRN | TRINITY Controllers Compatible |
| COG | COGNEX Cameras Compatible |
| BMR | BAUMER Cameras Compatible |
| KEY | DESCRIPTION |
| BC | Female Barrel Connector |
| M8A | Male M8 A-Code 4-Position |
| BM8A | Bulkhead Male M8 A-Code 4-Position |
| M12A, M12D | Male M12 A-code 5-Position |
| BM12A | Bulkhead Male M12 A-code 5-Position |
| BM12D | Bulkhead Male M12 D-Code 5-Position |
| M12T | Male M12 T-Code 4-Position |
| BM12T | Bulkhead Male M12 T-Code 4-Position |
| M12Y | Male M12 Y-Code 8-Position |
| BM12Y | Bulkhead Male M12 Y-Code 8-Position |
| T30 | Bulkhead Male (Turck RSF30) 3-Position |
| BT30 | Bulkhead Male (Turck RSF30) 3-Position |
| DB9 | Male D-Subminiature 9-Position |
| DB15 | Male D-Subminiature 15-Position |
| KEY | KEYENCE Controllers Compatible |
| UL-LLxxx (preliminary drawing) |
| UB-LLXXXX-TEMPLATE |
