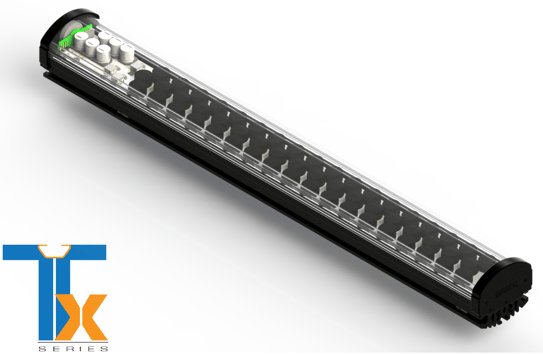

TXFL Series
Ultra High Intensity Bar Lights
The TXFL Series front lights provide the performance needed for the most demanding machine vision applications, when high intensity strobing of objects at a long working distance are required.
Utilizing three rows of extremely bright, highly uniform , LEDs these lights implement integrated driver technology that delivers instant start-up and flicker-free operation.
The TXFL series can be used both in DC continuous operation , or with 8x optical pulse-follow strobing.

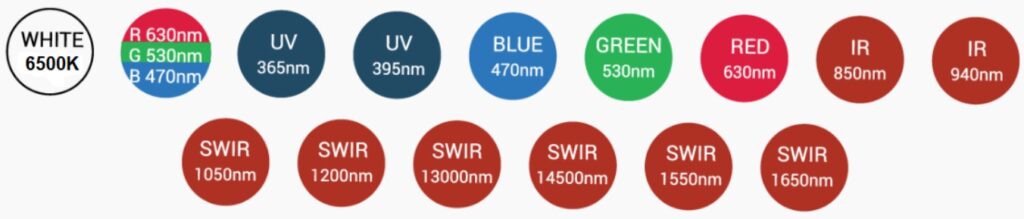

AVAILABLE WAVELENGTHS
| Power Source | 24VDC +/-5% |
| 0 – 10V Analog Intensity Control | Integral |
| Cable (Typical) | 10 ft / (3.05 m) cable with flying leads |
| Housing | Black Anodized Aluminum |
| Cooling | Passive |
| Ambient Temperature | -20 °C to 40 °C |
| Lifetime Expectancy | 75,000 hours (except UV) |
CABLE OPTION: DC CONTINUOUS (B VERSION)
| CAB-FM12FL-3M | 3 METER EXTENSION CABLE, FEMALE M12 A-CODE 5-PIN TO FLYING LEADS |
| CAB-FM12FL-5M | 5 METER EXTENSION CABLE, FEMALE M12 A-CODE 5-PIN TO FLYING LEADS |
| CAB-FM12FL-10M | 10 METER EXTENSION CABLE, FEMALE M12 A-CODE 5-PIN TO FLYING LEADS |
| CAB-FM12FL-15M | 15 METER EXTENSION CABLE, FEMALE M12 A-CODE 5-PIN TO FLYING LEADS |
CABLE OPTION: DC WITH STROBE (C VERSION)
| CAB-CX2P6SFL-3M | 3 METER EXT CABLE, FEMALE MULTI-CON-X 2-PIN POWER, 6-PIN SIGNAL TO FLYING LEADS |
| CAB-CX2P6SFL-5M | 5 METER EXT CABLE, FEMALE MULTI-CON-X 2-PIN POWER, 6-PIN SIGNAL TO FLYING LEADS |
| CAB-CX2P6SFL-1OM | 10 METER EXT CABLE, FEMALE MULTI-CON-X 2-PIN POWER, 6-PIN SIGNAL TO FLYING LEADS |
| CAB-CX2P6SFL-15M | 15 METER EXT CABLE, FEMALE MULTI-CON-X 2-PIN POWER, 6-PIN SIGNAL TO FLYING LEADS |
MOUNTING BRACKET KIT
| KIT-TXMB-01 | QUANTITY (2) END CAP SWIVEL MOUNTING BRACKET KIT, W/ PRINTED ANGULAR SCALE |
| KIT-TXMB-02 | QUANTITY (2) SLIDE SWIVEL MOUNTING BRACKET KIT, W/ PRINTED ANGULAR SCALE |
| KIT-TXMB-03 | QUANTITY (2), M6 STUD MOUNTING BENT BRACKET KIT |
| KIT-TXMB-04 | QUANTITY (3), JOINING PLATE BRACKET KIT |
Features
Application Type: High intensity floodlight applications, logistics, warehouse environments
Environmental – Standard or IP-67 version
Wavelength: R, G, B, W, RGB, UV365, UV395, IR850, IR940, SWIR (6 wavelengths)
Lensing: Available in 12, 16, 30, or 50-degree lensing options
Control: Standard driver allows light to be used continuous and with pulse follow strobe (8x power)
Mounting: 3-sided T-slots throughout length of light, with optional mounting bracket
Options: Multiple driver, diffuser, lens, and control options

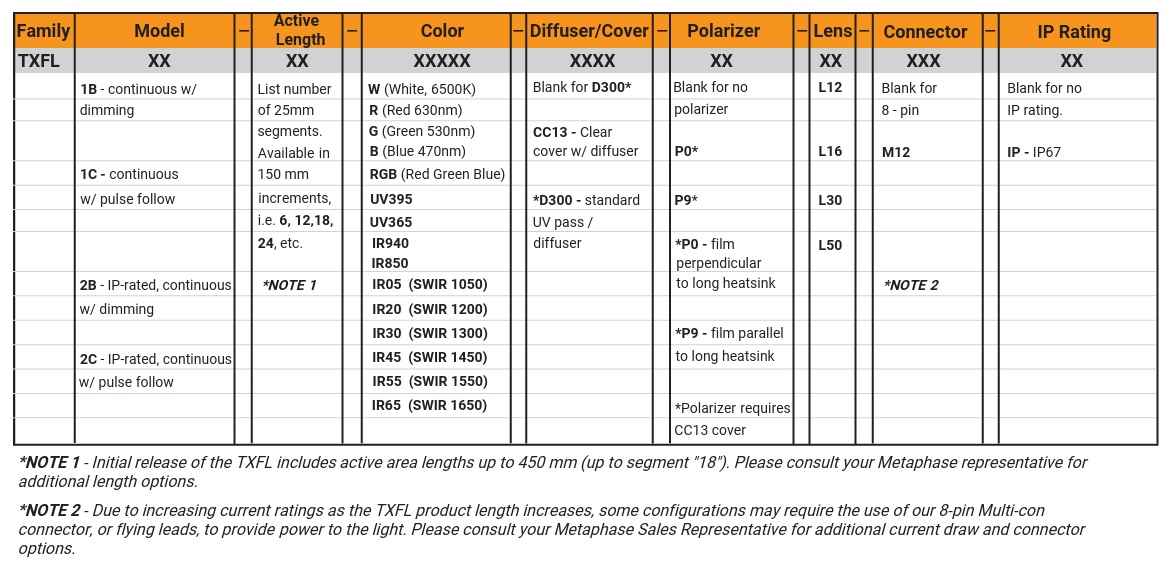

TXFL Series Front Light Part Number Guide
| TXFL Series Mechanical Drawing |
TXFL Light Operation (1C versions)
Continuous Mode: The light will illuminate, at full intensity, when 24VDC is applied to the +24V line, 10-24VDC is applied to the 0-10V
dimming line, and a continuous voltage > 2.4VDC (up to 24V max) is applied to the trigger line.
The light can be dimmed by proportionally applying a voltage less than 10VDC to the 0-10VDC intensity control while the trigger input
requirements are satisfied. User can toggle the light ON/OFF at DC level by turning ON/OFF the 0-10VDC control line.
Strobe operation: Trigger input line uses a “follow me trigger” design where the light will strobe at 8x overdrive intensity when
a pulse is applied to the trigger input for a duration between 2.5us and 2ms, with a duty cycle less than 10%. For trigger pulses that have
a duration longer than 2 ms, and/or duty cycle higher than 10%, the light will continue to strobe at 1X intensity (which is equivalent to
continuous mode intensity). Strobe mode* also uses 0-10VDC control line where the light will be at FULL intensity when any voltage from
10-24VDC is applied to this control line and proportionally dimmer for voltages less than 10VDC.
