TXFD and TXFCD Series

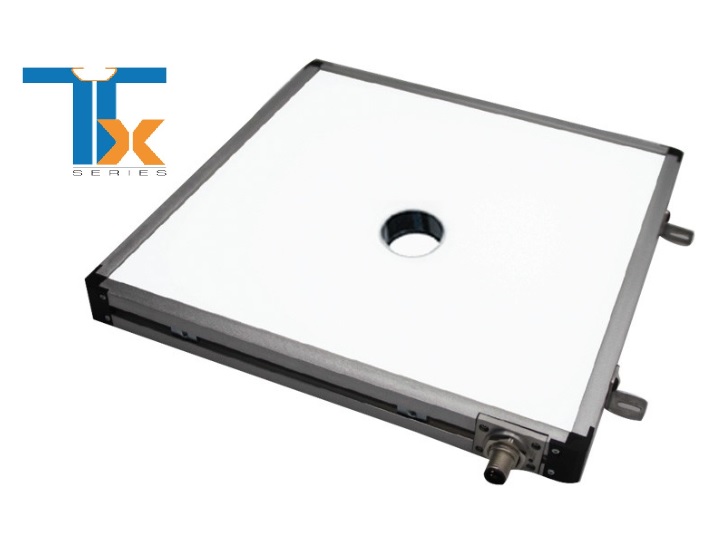

TX Series Flat Dome: Square
The TX Flat Dome Series utilizes a bright and highly uniform array of LEDs.
Metaphase’ advanced current Driver Technology delivers instant startup and flicker-free operation.
TX Series Flat Dome lights can be used in both DC Continuous mode or with 4X Optical Pulse-Follow Strobe.
AVAILABLE WAVELENGTHS
Electrical
| Supply Voltage | 24VDC+/-5% |
| Dimming Control | 0-10V Linear Analog Input |
| Trigger Input: | PNP |
Optical
| Light Source | LED |
| LED Array Density | High Density Precision Chip Technology (HDPCT) |
| Available Wavelengths | 470, 530, 630, 850, 940 |
| Intensity | 73,000 Lux |
| Available Color Combinations | W(5700K), RGB, RGBW,WIR850 (5700K/850), WIR940 (5700K/940) |
| Lifetime | L70 = 75,000 hours |
Mechanical
| Housing | 25mm profile with 10mm bezel, made of clear anodized aluminum |
| Mounting | Qty 2 T-nuts minimum per side, pre-installed |
| Outside Dimensions | PhotoActive Area + 20mm each side |
General
| Operating Temperature | 0-40°C, 90% RH, non-condensing* |
| IP Rating | IP50 |
| Storage Temperature | 0-70°C, 90% RH, non-condensing |
| Compliance | RoHs, CE, IEC 61000-6-2, 61000-6-4, 61010-1 |
| Photobiological Risk Factor | Exempt |
| Warranty | 2 Years |
Features
Application Type: Backlighting, diffuse lighting, dome lighting
Intensity: 73,000 Lux (263W/m2)
Wavelength: R, G, B, W, RGB, RGBW, IR850, IR940 (Choose up to 4 wavelengths, or 2 if using IR940)
Control: New, advanced microprocessor that allows for DC continuous mode WITH continuous pulse-follow strobe all-in-one all built-in
Mounting: 4-side T-slot mounting system with 180 degree adjustable T-slot L-Brackets
Footprint: Low-profile housing with 10mm bezel
Versatility: Multiple center hole sizes, ability to have multiple camera holes on one light

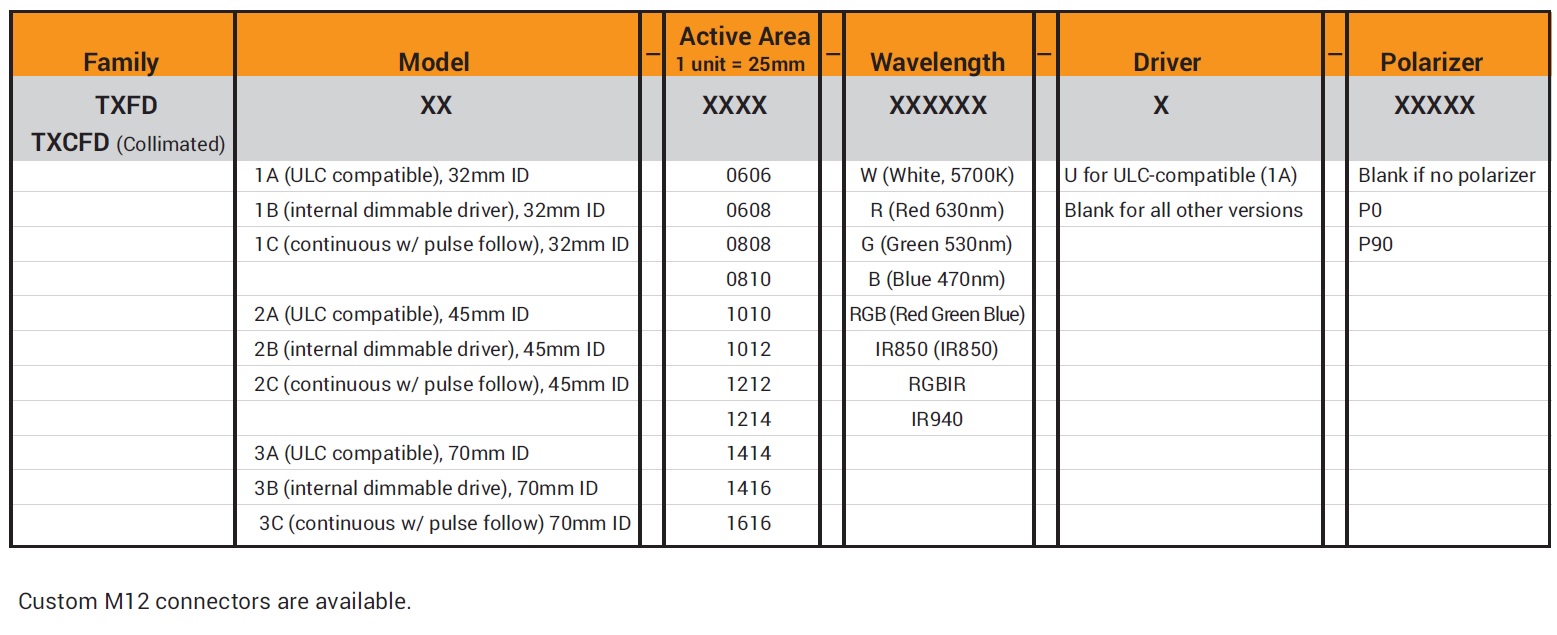

TX Series Flat Dome Series Part Number Guide
| TXFD (150×150 mm Version) |
| TXFD1A-0606-ASSY |
| DRIVER OPTIONS |
Metaphase offers many Driver options to customize our lights to any specific application. Most Drivers are available in both Built-In (BI) and In-Line (IL) configurations and include features for Intensity Control, Triggering, Strobing, compatibility with LED Controllers such as the ULC-2 and other third-party controllers; Keyence and Trinity. Other Drivers offered are unique for compatibility with Cognex and Baumer cameras. These options provide greater flexibility, control, and convenience when integrating Metaphase illumination systems. All drivers will not be compatible with every light of every size. |
| DESCRIPTION | |
| 24CV | 24V, Constant Voltage |
| 24Z | 24V, Constant Current with 0-10V Intensity Control |
| 24NZ | 24V, Constant Current with No 0-10V Intensity Control |
| 24-BIS100 | 24V, Built-In Strobe, 100µs |
| 24-BIS250 | 24V, Built-In Strobe, 250µs |
| 24-BIS300 | 24V, Built-In Strobe, 300µs |
| 24Z-TRG | 24V, Built-In Trigger with 0-10V Intensity Control |
| 24Z-FTRG | 24V, Built-In Fast Trigger with 0-10V Intensity Control |
| 24-ILD | 24V, In-Line Dimmer |
| 24-ILD2,3,4,5 | 24V, In-Line Dimmer 2, 3, 4 or 5 Channel |
| 24-ILDT | 24V, In-Line Dimmer with Trigger |
| 24-ILDT2,3,4,5 | 24V, In-Line Dimmer with Trigger 2, 3, 4 or 5 Channel |
| 24-ILDFT | 24V, In-Line Dimmer with Fast Trigger |
| 24-ILZ | 24V, In-Line 0-10V Intensity Control |
| 24-ILZ2,3,4,5 | 24V, In-Line 0-10V Intensity Control, 2, 3, 4 or 5 Channel |
| 24-ILNZ | 24V, In-Line Constant Current with No 0-10V Intensity Control |
| 24-ILT | 24V, In-Line Trigger |
| 24-ILT2,3,4,5 | 24V, In-Line Trigger, 2, 3, 4 or 5 Channel |
| 24-ILFT | 24V, In-Line Fast Trigger |
| 24-ILFT2,3,4,5 | 24V, In-Line Fast Trigger, 2, 3, 4 or 5 Channel |
| 24-ILZT | 24V, In-Line 0-10V Intensity Control with Trigger |
| 24-ILZT2,3,4,5 | 24V, In-Line 0-10V Intensity Control with Trigger 2, 3, 4 or 5 Channel |
| 24-ILS50 | 24V, In-Line Strobe, 50µs |
| 24-ILS100 | 24V, In-Line Strobe, 100µs |
| 24-ILS250 | 24V, In-Line Strobe, 250µs |
| 24-ILS300 | 24V, In-Line Strobe, 300µs |
| 24-ILS500 | 24V, In-Line Strobe, 500µs |
| 24-ILS700 | 24V, In-Line Strobe, 700µs |
| 24-ILS1000 | 24V, In-Line Strobe, 1000µs |
| 24-ILS1500 | 24V, In-Line Strobe, 1500µs |
| U | Universal LED Controller (ULC) Compatible |
| U2 | Universal LED Controller (ULC) Compatible, Dual |
| TRN | TRINITY Controllers Compatible |
| COG | COGNEX Cameras Compatible |
| BMR | BAUMER Cameras Compatible |
| KEY | DESCRIPTION |
| BC | Female Barrel Connector |
| M8A | Male M8 A-Code 4-Position |
| BM8A | Bulkhead Male M8 A-Code 4-Position |
| M12A, M12D | Male M12 A-code 5-Position |
| BM12A | Bulkhead Male M12 A-code 5-Position |
| BM12D | Bulkhead Male M12 D-Code 5-Position |
| M12T | Male M12 T-Code 4-Position |
| BM12T | Bulkhead Male M12 T-Code 4-Position |
| M12Y | Male M12 Y-Code 8-Position |
| BM12Y | Bulkhead Male M12 Y-Code 8-Position |
| T30 | Bulkhead Male (Turck RSF30) 3-Position |
| BT30 | Bulkhead Male (Turck RSF30) 3-Position |
| DB9 | Male D-Subminiature 9-Position |
| DB15 | Male D-Subminiature 15-Position |
| KEY | KEYENCE Controllers Compatible |
| TX Flat Dome Datasheet |  | |||
| TX Flat Dome Drawings | |  |
