CCS Flat Dome Illuminators

The Ultimate Space-Saving lighting solution for inspection of highly reflective specular objects.

CCS Flat Dome Illuminators



Patented unique architecture provides a compact solution for highly diffuse and uniform lighting.

The CCS LFXV and LXV3 Series emulates the performance of much larger Coaxial Dome lights.

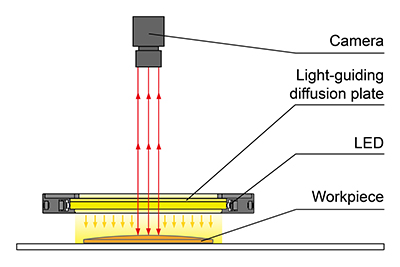

CCS Flat Dome lights provide a coaxial camera view, but without the camera hole needed for standard dome and competing flat domes lights.

Conceptual image---left:Dome Light (HPD2-400) right:Flat Dome Light (LFXV-300)

COMPARISON BETWEEN LFXV and LFX3 Series Flat Dome Illuminators



The CCS Inc. LFX3 and LFXV series are both flat dome lights used for machine vision, offering a unique patented design available ONLY from CCS.



GENERAL DIFFERENCES

The main difference is that the newer LFXV Series features a slimmer design, smaller micro-dots for clearer imaging with closed apertures, and a larger lineup including sizes up to 300mm and rectangular shapes, whereas the older LFX3 Series is limited to sizes up to 200mm.



DESIGN AND SIZE OPTIONS

  • LFX3 Series: Offers 28 models across 7 sizes (up to 200 × 200 mm.)

  • LFXV Series: Offers 40 models across 10 sizes, adding large 300mm options and rectangular aspect ratios. It also features a thinner, more compact case design.

OPTICAL PERFORMANCE
  • LFX3 Series: Uses standard micro-dot diffusion patterns effective for general fast-moving production lines.

  • LFXV Series: Uses refined, smaller micro-dots on its light-guide plate. This reduces interference and allows for sharp, clear images even when using a closed camera aperture.






LFXV Series

Industry Leading Flat Dome Light with a Clear Field of View.
Newly developed light-guiding plate.

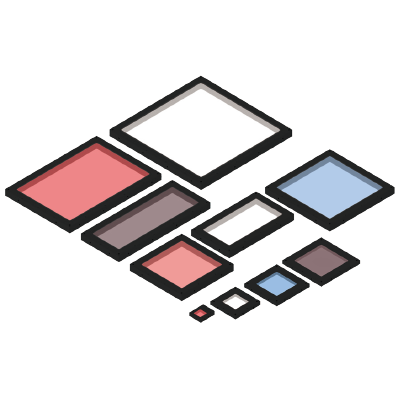

  • Available in 10 sizes, for a total lineup of 40 models

  • Large sizes up to 300mm and rectangular sizes now available

  • Select from four LED colors: red, white, blue, and infrared

  • Space-saving case design is thin, compact and lightweight

MODELCOLORHORIZONTAL
PhotoActive Length
(mm)		VERTICAL
PhotoActive Length
(mm)		POWER
Consumption
(Watts)		WIDTH
(mm)		HEIGHT
(mm)		Thickness
(mm)		MASS
(grams)

LFXV-25RD

RED (630 nm)25.025.01.243.052.010.080.0$   2,150

LFXV-25BL

BLUE (465 nm)25.025.01.243.052.010.080.0$   2,150

LFXV-25SW

WHITE (5500K)25.025.01.343.052.010.080.0$   2,150

LFXV-25IR860

NIR (860 nm)25.025.01.243.052.010.080.0$   2,150

LFXV-50RD

RED (630 nm)50.050.01.293.093.010.0190.0$   2,150

LFXV-50BL

BLUE (465 nm)50.050.01.293.093.010.0190.0$   2,150

LFXV-50SW

WHITE (5,500K)50.050.01.293.093.010.0190.0$   2,150

LFXV-50IR860

NIR (860 nm)50.050.01.293.093.010.0190.0$   2,150

LFXV-75RD

RED (630 nm)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-75BL

BLUE (465 nm)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-75SW

WHITE (5,500K)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-75IR860

NIR (860 nm)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-100RD

RED (630 nm)100.0100.016.0143.0143.010.0400.0$   2,150

LFXV-100BL

BLUE (465 nm)100.0100.016.0143.0143.010.0400.0$   2,150

LFXV-100SW

WHITE (4,600K)100.0100.019.0143.0143.010.0400.0$   2,150

LFXV-100IR860

NIR (860 nm)100.0100.020.0143.0143.010.0400.0$   2,150

LFXV-150RD

RED (630 nm)150.0150.028.0193.0193.016.0870.0$   2,150

LFXV-150BL

BLUE (465 nm)150.0150.028.0193.0193.016.0870.0$   2,150

LFXV-150SW

WHITE (4,600K)150.0150.030.0193.0193.016.0870.0$   2,150

LFXV-150IR860

NIR (860 nm)150.0150.017.0193.0193.016.0870.0$   2,150

LFXV-200RD

RED (630 nm)200.0200.031.0243.0243.016.01300.0$   2,150

LFXV-200BL

BLUE (465 nm)200.0200.038.0243.0243.016.01300.0$   2,150

LFXV-200SW

WHITE (5,500K)200.0200.040.0243.0243.016.01300.0$   2,150

LFXV-200IR860

NIR (855 nm)200.0200.023.0243.0243.016.01300.0$   2,150

LFXV-200x100RD

RED (630 nm)200.0100.023.0243.0143.016.0870.0$   2,150

LFXV-200x100BL

BLUE (465 nm)200.0100.028.0243.0143.016.0870.0$   2,150

LFXV-200x100SW

WHITE (5,500K)200.0100.028.0243.0143.016.0870.0$   2,150

LFXV-200x100IR860

NIR (855 nm)200.0100.023.0243.0143.016.0870.0$   2,150

LFXV-300RD

RED (630 nm)300.0300.046.0343.0343.016.02000.0$   2,150

LFXV-300BL

BLUE (465 nm)300.0300.056.0343.0343.016.02000.0$   2,150

LFXV-300SW

WHITE (5,500K)300.0300.060.0343.0343.016.02000.0$   2,150

LFXV-300IR360

NIR (855 nm)300.0300.034.0343.0343.016.02000.0$   2,150

LFXV-300x100RD

RED (630 nm)300.0100.031.0143.0343.016.01300.0$   2,150

LFXV-300x100BL

BLUE (465 nm)300.0100.038.0143.0343.016.01300.0$   2,150

LFXV-300x100SW

WHITE (5,500K)300.0100.040.0143.0343.016.01300.0$   2,150

LFXV-300x100IR860

NIR (855 nm)300.0100.023.0143.0343.016.01300.0$   2,150

LFXV-300x200RD

RED (630 nm)300.0100.038.0243.0343.016.01600.0$   2,150

LFXV-300x200BL

BLUE (465 nm)300.0300.047.0243.0343.016.01600.0$   2,150

LFXV-300x200SW

WHITE (5,500K)300.0200.050.0243.0343.016.01600.0$   2,150

LFXV-300x200IR860

NIR (855 nm)300.0200.029.0243.0343.016.01600.0$   2,150

LFX3 Series

High output to match high-speed inspection

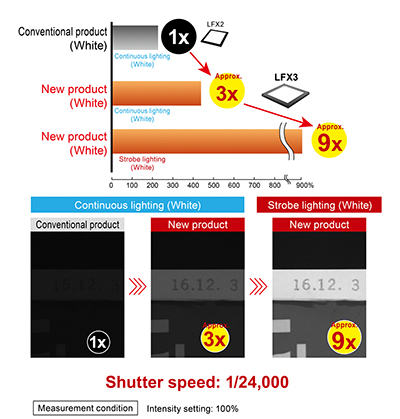

The LFX3-series Light Units are high-power Flat Dome Lights perfect for fast-moving production lines. The brightness of the white lights has been tripled.

MODELCOLORHORIZONTAL
PhotoActive Length
(mm)		VERTICAL
PhotoActive Length
(mm)		POWER
Consumption
(Watts)		WIDTH
(mm)		HEIGHT
(mm)		Thickness
(mm)		MASS
(grams)

LFX3-25RD

RED (632 nm)25.025.01.643.052.010.980.0$   2,150

LFX3-25BL

BLUE (469 nm)25.025.00.843.052.010.980.0$   2,150

LFX3-25SW(A)

WHITE (6500K)25.025.01.543.052.010.980.0$   2,150

LFX3-25IR860

NIR (857 nm)25.025.01.443.052.010.980.0$   2,150

LFXV-50RD

RED (630 nm)50.050.01.293.093.010.0190.0$   2,150

LFXV-50BL

BLUE (465 nm)50.050.01.293.093.010.0190.0$   2,150

LFXV-50SW

WHITE (5,500K)50.050.01.293.093.010.0190.0$   2,150

LFXV-50IR860

NIR (860 nm)50.050.01.293.093.010.0190.0$   2,150

LFXV-75RD

RED (630 nm)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-75BL

BLUE (465 nm)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-75SW

WHITE (5,500K)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-75IR860

NIR (860 nm)75.075.014.0118.0118.010.0290.0$   2,150

LFXV-100RD

RED (630 nm)100.0100.016.0143.0143.010.0400.0$   2,150

LFXV-100BL

BLUE (465 nm)100.0100.016.0143.0143.010.0400.0$   2,150

LFXV-100SW

WHITE (4,600K)100.0100.019.0143.0143.010.0400.0$   2,150

LFXV-100IR860

NIR (860 nm)100.0100.020.0143.0143.010.0400.0$   2,150

LFXV-150RD

RED (630 nm)150.0150.028.0193.0193.016.0870.0$   2,150

LFXV-150BL

BLUE (465 nm)150.0150.028.0193.0193.016.0870.0$   2,150

LFXV-150SW

WHITE (4,600K)150.0150.030.0193.0193.016.0870.0$   2,150

LFXV-150IR860

NIR (860 nm)150.0150.017.0193.0193.016.0870.0$   2,150

LFXV-200RD

RED (630 nm)200.0200.031.0243.0243.016.01300.0$   2,150

LFXV-200BL

BLUE (465 nm)200.0200.038.0243.0243.016.01300.0$   2,150

LFXV-200SW

WHITE (5,500K)200.0200.040.0243.0243.016.01300.0$   2,150

LFXV-200IR860

NIR (855 nm)200.0200.023.0243.0243.016.01300.0$   2,150

LFXV-200x100RD

RED (630 nm)200.0100.023.0243.0143.016.0870.0$   2,150

LFXV-200x100BL

BLUE (465 nm)200.0100.028.0243.0143.016.0870.0$   2,150

LFXV-200x100SW

WHITE (5,500K)200.0100.028.0243.0143.016.0870.0$   2,150

LFXV-200x100IR860

NIR (855 nm)200.0100.023.0243.0143.016.0870.0$   2,150

LFXV-300RD

RED (630 nm)300.0300.046.0343.0343.016.02000.0$   2,150

LFXV-300BL

BLUE (465 nm)300.0300.056.0343.0343.016.02000.0$   2,150

LFXV-300SW

WHITE (5,500K)300.0300.060.0343.0343.016.02000.0$   2,150

LFXV-300IR360

NIR (855 nm)300.0300.034.0343.0343.016.02000.0$   2,150

LFXV-300x100RD

RED (630 nm)300.0100.031.0143.0343.016.01300.0$   2,150

LFXV-300x100BL

BLUE (465 nm)300.0100.038.0143.0343.016.01300.0$   2,150

LFXV-300x100SW

WHITE (5,500K)300.0100.040.0143.0343.016.01300.0$   2,150

LFXV-300x100IR860

NIR (855 nm)300.0100.023.0143.0343.016.01300.0$   2,150

LFXV-300x200RD

RED (630 nm)300.0100.038.0243.0343.016.01600.0$   2,150

LFXV-300x200BL

BLUE (465 nm)300.0300.047.0243.0343.016.01600.0$   2,150

LFXV-300x200SW

WHITE (5,500K)300.0200.050.0243.0343.016.01600.0$   2,150

LFXV-300x200IR860

NIR (855 nm)300.0200.029.0243.0343.016.01600.0$   2,150
