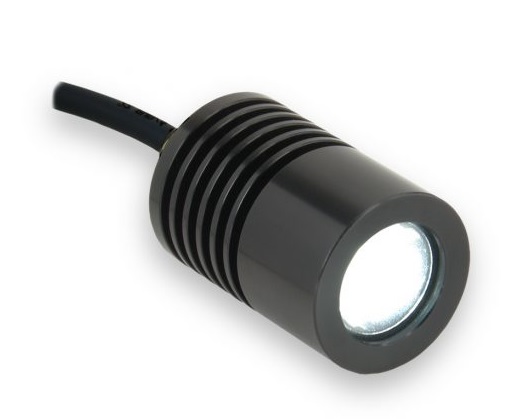

SL164 Series
Compact High Intensity Spotlights
The SL164 is characterized as a Compact High Intensity Spot Light with sufficient thermal management to provide 200kLux at a working distance of 4” (100mm).
A very wide range of wavelengths are available from UV to IR.
Multiple beam spreads are also available as is a diffuser option.
CURRENT | COLOR | 24VDC Current | All Other Controls |
| WHI | 90 mA | 230 mA Max | |
| 405, 455, 470, 505, 530, 590, 625, 660 | 160 mA | 250 mA Max | |
| 365, 375, 385, 395 | 60 mA | 80 mA Max | |
| 730, 850 | 140 mA | 100 mA Max | |
| 940 | 140 mA | 150 mA Max |
| OPERATING TEMPERATURE | 0C to 60°C |
| MASS | 81.6g (2.9 oz) |
| INCLUDED CABLE | 2 M long -0/+150 mm (80″ -0/+6″) – 105°C rated PVC jacket, foil shield with drain |
| PHOTOBIOLOGICAL SAFETY | Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
| STANDARDS COMPLIANCE | CE, RoHS, IEC 62471 |
| IP RATING | IP50 |
| LUMINANCE MAINTENANCE | L70 = 50,000 Hours |
 |  |  |  |
