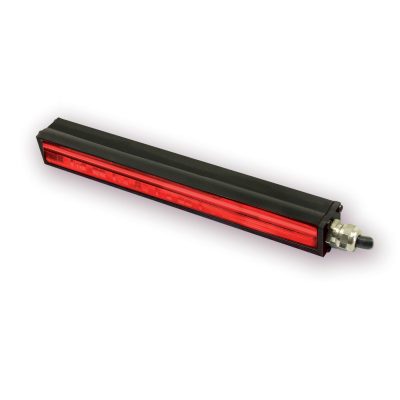

LL232 Series
MicroBrite™ Line Lights
Part of the MicroBrite Series of compact, yet powerful lights, the LL232 linelight is designed to be placed into smaller work spaces that will not accommodate standard high intensity line lights.
The LL232 utilizes a Fresnel focusing lens and high thermal efficiency that is a hallmark of the MicroBrite Series light heads.
Other than aforementioned smaller footprint, the LL232 differs from from the standard LL137/LL167/LL330 linescan lights in not having an embedded driver, limited lengths, offering 1 optimal line focus at 75mm working distance and less intensity.
CURRENT | COLOR | 24VDC Current | All Other Controls |
| 455, WHI | 100 mA per 50 mm segment | 150 mA Max per 50 mm segment | |
| 660, 730 | 60 mA per 50 mm segment | 130 mA Max per 50 mm segment | |
| 850, 940 | 100 mA per 50 mm segment | 120 mA Max per 50 mm segment |
| OPERATING TEMPERATURE | 0 to 60°C |
| MASS | Varies by Size; LL232-150 unit is 86.2g (3.04oz) |
| INCLUDED CABLE | 2 M long -0/+150 mm (80″ -0/+6″) – 105°C rated PVC jacket, foil shield with drain |
| PHOTOBIOLOGICAL SAFETY | Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 660, 730, WHI |
| STANDARDS COMPLIANCE | CE, RoHS, IEC 62471 |
| IP RATING | N.R. |
| LUMINANCE MAINTENANCE | L70 = 50,000 Hours |
 |  |  |  |
